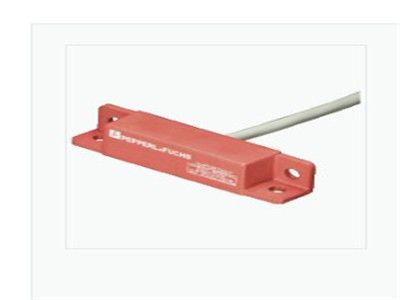

PEPPERL+FUCHS Magnetic field sensor 40FY26-020 Proximity Sensors Industrial Sensors

General specifications

Switching function    Normally open (NO)

Output type PNP

Rated operating distance Use either 41FY1 - 6.4 - 15.2 mm or 41FY2 - 7.6 - 19 mm

Installation  non-flush

Output polarity  DC

Nominal ratings

Operating voltage    10 ... 30 V DC

Hysteresis   5 ... 25 %

Short-circuit protection   yes

Voltage drop     ≤ 2.5 V DC

Repeat accuracy +/- 3 %

Operating current     ≤ 200 mA

Off-state current ≤ 30 mA

No-load supply current   ≤ 40 mA
