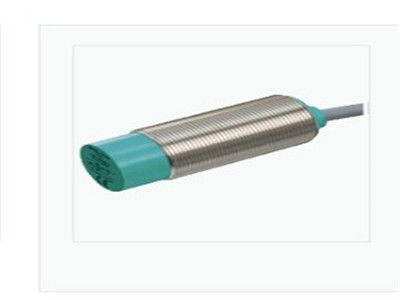

PEPPERL+FUCHS Capacitive sensor CJ10-30GM-WS Proximity Sensors Industrial Sensors

General specifications

Switching function    Normally open (NO)

Output type Two-wire

Rated operating distance 10 mm

Installation  non-flush

Output polarity  AC

Assured operating distance   0 ... 7.2 mm

Output type 2-wire

Nominal ratings

Installation conditions

A    0 mm

B    0 mm

C    30 mm

F    50 mm

Operating voltage    20 ... 253 V AC 1)

Switching frequency  0 ... 10 Hz

Hysteresis   2 ... 10 typ. 5 %

Reverse polarity protection   reverse polarity tolerant

Voltage drop at IL

Voltage drop IL = 100 mA, switching element on  typ. 7 V

Momentary current

(20 ms, 0.1 Hz) 0 ... 1200 mA

Rated insulation voltage  1500 V

Operating current     5 ... 200 mA

Lowest operating current      5 mA

Off-state current 0.7 ... 1.5 mA typ.

Time delay before availability      ≤ 300 ms

Switching state indicator  LED, yellow
