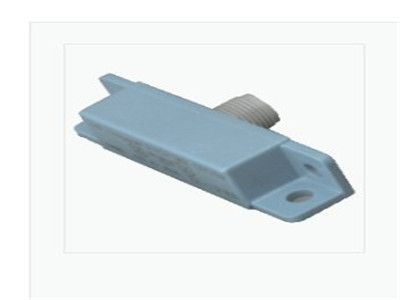

PEPPERL+FUCHS Magnetic field sensor 40FR1-33 Proximity Sensors Industrial Sensors

General specifications

Switching function    Normally open (NO)

Output type Reed Contact

Rated operating distance 19.8 mm

Installation  non-flush

Output polarity  AC/DC

Mechanical life   3 x 107 operations

Nominal ratings

Operating voltage    100 V DC, 250 mA 115 V AC, 250 mA

Hysteresis   ≥2.54 mm

Contact resistance    0.15 Ω

Insulation resistance min. 100 MΩ at 200 V

Dielectric strength    200 V AC, 60 Hz

Release point    ≤ max. 43 mm
