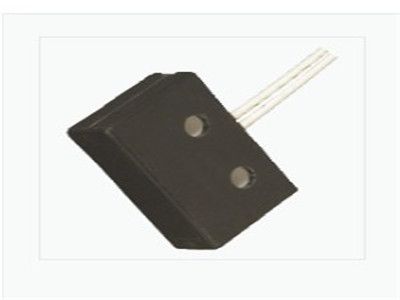

PEPPERL+FUCHS Magnetic field sensor 50FR2-3-1 Proximity Sensors Industrial Sensors

General specifications

Switching function    Normally open (NO)

Output type Reed Contact

Rated operating distance 11.4 mm

Installation  non-flush

Output polarity  AC/DC

Mechanical life   3 x 107 operations

Nominal ratings

Operating voltage    100 V DC, 250 mA 115 V AC, 250 mA

Hysteresis   ≥2.54 mm

Contact resistance    0.2 Ω

Insulation resistance min. 100 MΩ at 200 V DC

Dielectric strength    200 V AC, 60 Hz

Release point    max. 17.8 mm

Electrical specifications

Electrical rating   AC supply: 10 VA, 132 V AC, 750 mA

DC supply: 10 W, 100 V DC, 300 mA

Ambient conditions

Ambient temperature     -40 ... 125 °C (-40 ... 257 °F)
