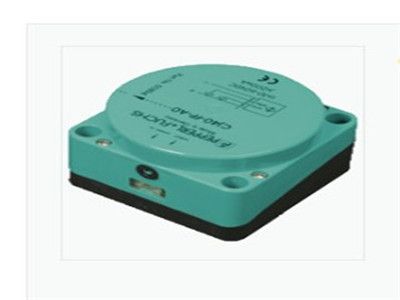

PEPPERL+FUCHS Capacitive sensor CJ40-FP-A2-P1 Proximity Sensors Industrial Sensors

General specifications

Switching function    complementary

Output type PNP

Rated operating distance 40 mm

Installation  non-flush

Output polarity  DC

Assured operating distance   0 ... 32.4 mm

Output type 4-wire

Nominal ratings

Installation conditions

B    40 mm

C    80 mm

F    120 mm

Operating voltage    10 ... 60 V DC

Switching frequency  0 ... 10 Hz

Reverse polarity protection   reverse polarity protected

Short-circuit protection   pulsing

Voltage drop     ≤ 2.8 V

Operating current     0 ... 200 mA

No-load supply current   ≤ 20 mA

Switching state indicator  LED, yellow
