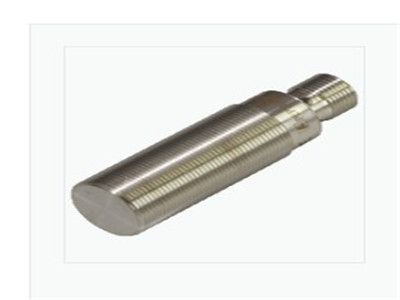

PEPPERL+FUCHS Magnetic field sensor MMB70-18GH50-E2-V1 Proximity Sensors Industrial Sensors

General specifications

Switching function    Normally open (NO)

Output type PNP

Rated operating distance 70 mm

Installation  flush

Output polarity  DC

Actuating element    magnetic

Output type 3-wire

Nominal ratings

Operating voltage    10 ... 30 V DC

Switching frequency  5000 Hz

Hysteresis   1 ... 10 %

Reverse polarity protection   reverse polarity protected

Short-circuit protection   pulsing

Voltage drop     ≤ 2.5 V DC

Operating current     ≤ 200 mA

Current consumption      < 10 mA
