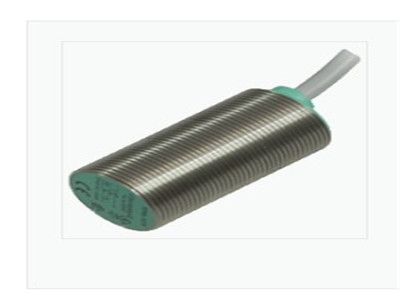

PEPPERL+FUCHS Capacitive sensor CCB10-30GS60-E2-V1 Proximity Sensors Industrial Sensors

General specifications

Switching function    Normally open (NO)

Output type PNP

Rated operating distance 10 mm

Installation  flush

Output polarity  DC

Assured operating distance   0 ... 8.1 mm

Output type 3-wire

Nominal ratings

Installation conditions

A    0 mm

B    0 mm

C    20 mm

F    40 mm

Operating voltage    10 ... 60 V DC

Switching frequency  0 ... 10 Hz

Reverse polarity protection   reverse polarity protected

Short-circuit protection   pulsing

Voltage drop     ≤ 2.8 V

Operating current     0 ... 200 mA

Off-state current 0 ... 0.5 mA typ. 0.1 µA at 25 °C

Off-state current TU =40 °C, switching element off     ≤ 100 µA

No-load supply current   ≤ 20 mA

Time delay before availability      ≤ 50 ms

Switching state indicator  LED, yellow
