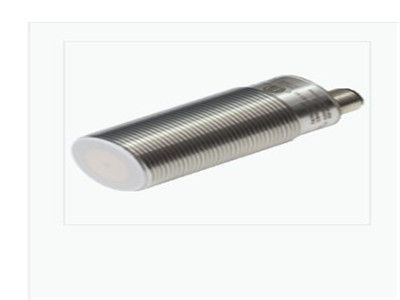

PEPPERL+FUCHS Capacitive sensor CCB10-30GS55-N1-V1 Proximity Sensors Industrial Sensors

General specifications

Switching function    Normally open (NO)

Output type NAMUR

Rated operating distance 10 mm

Installation  flush

Output type 2-wire

Nominal ratings

Installation conditions

A    0 mm

B    0 mm

C    20 mm

F    60 mm

Nominal voltage 8.2 V (Ri approx. 1 kΩ)

Operating voltage    5 ... 15 V

Switching frequency  0 ... 50 Hz

Reverse polarity protection   reverse polarity protected

Current consumption

Measuring plate not detected ≤ 1.5 mA

Measuring plate detected      ≥ 2.5 mA

Switching state indicator  LED, yellow
