PEPPERL+FUCHS Original Inductive sensor NBB10-30GM40-Z0 Proximity Sensors Inductive Sensors with Very Competitive Price & One Year Warranty
- Product description
- Contact us

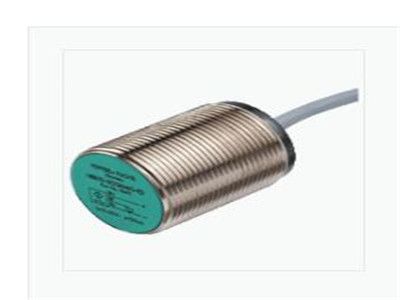

PEPPERL+FUCHS Inductive sensor NBB10-30GM40-Z0 Proximity Sensors Inductive Sensors
General specifications
Switching function Normally open (NO)
Output type Two-wire
Rated operating distance 10 mm
Installation flush
Output polarity DC
Assured operating distance 0 ... 8.1 mm
Actual operating distance 9 ... 11 mm typ.
Reduction factor rAl 0.3
Reduction factor rCu 0.25
Reduction factor r304 0.7
Output type 2-wire
Nominal ratings
Operating voltage 5 ... 60 V
Switching frequency 0 ... 150 Hz
Hysteresis 1 ... 10 typ. 5 %
Reverse polarity protection reverse polarity tolerant
Short-circuit protection pulsing
Voltage drop ≤ 5 V
Operating current 2 ... 100 mA
Lowest operating current 2 mA
Off-state current 0 ... 0.5 mA typ.
Time delay before availability ≤
Switching state indicator all direction LED, yellow
Selection Models :
IA6-12GM50-IU-V1
NBB0,6-3M22-E2
NBB0,6-4GM22-E2
NBB0,8-4M25-E2
NBB0,8-4M25-E2-V3
NBB0,8-5GM25-E2
NBB0,8-5GM25-E2-V3
NBB0,8-F141-E2
NBB1,5-5GM25-E2-V3
NBB1,5-8GM40-Z0
NBB1,5-F41-E2
NBB1,5-F41-E2-V3
NBB1,5-F79-E2
NBB1-3M22-E2
NBB1-4GM22-E2
NBB10-30GM40-Z0
NBB10-30GM50-WS
NBB15-30GM50-E2
NBB15-30GM50-E2-M
NBB15-30GM50-E2-V1
NBB15-30GM50-US
NBB15-30GM50-WS
NBB15-30GM60-A2
NBB15-30GM60-A2-V1
NBB15-F148P10-E2-M
NBB2-12GM40-Z0
NBB2-12GM40-Z0-V1
NBB2-8GH20-E2-V3
NBB2-F29-A2
NBB2-F76-E2-0,5M
NBB2-V3-E2
NBB2-V3-E2-3G-3D
NBB2-V3-E2-V5
NBB20-L2-A2-V1
NBB20-L2-A2-V1-M
NBB20-L2-E2-V1
NBB20-U1-A2
NBB20-U1-E2
NBB20-U1-E2-M
NBB20-U1-UU
Inductive analog sensor IA6-12GM50-IU-V1
Inductive sensor NBB0,6-3M22-E2
Inductive sensor NBB0,6-4GM22-E2
Inductive sensor NBB0,8-4M25-E2
Inductive sensor NBB0,8-4M25-E2-V3
Inductive sensor NBB0,8-5GM25-E2
Inductive sensor NBB0,8-5GM25-E2-V3
Inductive sensor NBB0,8-F141-E2
Inductive sensor NBB1,5-5GM25-E2-V3
Inductive sensor NBB1,5-8GM40-Z0
Inductive sensor NBB1,5-F41-E2
Inductive sensor NBB1,5-F41-E2-V3
Inductive sensor NBB1,5-F79-E2
Inductive sensor NBB1-3M22-E2
Inductive sensor NBB1-4GM22-E2
Inductive sensor NBB10-30GM40-Z0
