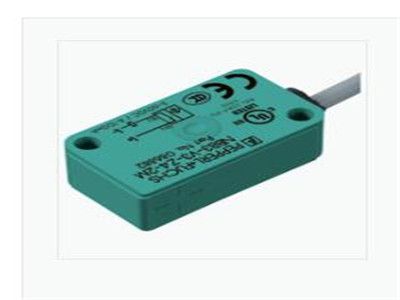

PEPPERL+FUCHS Inductive sensor NBB3-V3-Z4 Proximity Sensors Inductive Sensors

General specifications

Switching function    Normally open (NO)

Output type Two-wire

Rated operating distance 3 mm

Installation  flush

Output polarity  DC

Assured operating distance   0 ... 2.4 mm

Actual operating distance      2.7 ... 3.3 mm typ.

Reduction factor rAl  0.45

Reduction factor rCu 0.35

Reduction factor r304     0.8

Reduction factor rBrass   0.5

Output type 2-wire

Nominal ratings

Operating voltage    5 ... 60 V DC

Switching frequency  0 ... 2000 Hz

Hysteresis   typ. 0.2 mm

Reverse polarity protection   reverse polarity protected

Short-circuit protection   no

Inductive overvoltage protection yes

Voltage drop     ≤ 4 V

Voltage drop at IL

Voltage drop IL = 10 mA, switching element on   3.4 ... 3.9 V typ. 3.6 V

Operating current     4 ... 100 mA

Lowest operating current      4 mA

Off-state current 0.4 ... 0.55 mA typ. 0.46 mA

Time delay before availability      ≤ 1 ms

Switching state indicator  LED, yellow
