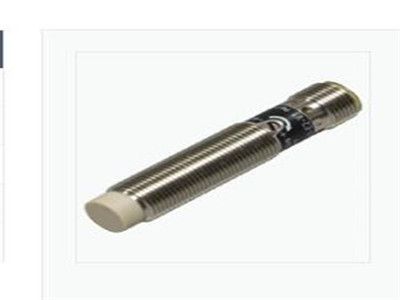

PEPPERL+FUCHS Capacitive sensor CBN8-12GH60-E2-V1 Proximity Sensors Inductive Sensors

General specifications

Switching function    Normally open (NO)

Output type PNP

Rated operating distance 8 mm

Installation  non-flush

Output polarity  DC

Assured operating distance   0 ... 6.48 mm

Nominal ratings

Installation conditions

A    8 mm

B    10 mm

C    20 mm

F    25 mm

Operating voltage    10 ... 36 V DC

Switching frequency  0 ... 50 Hz

Reverse polarity protection   reverse polarity protected

Short-circuit protection   pulsing

Voltage drop     ≤ 2.5 V

Operating current     0 ... 100 mA

No-load supply current   ≤ 12 mA

Switching state indicator  LED, yellow
