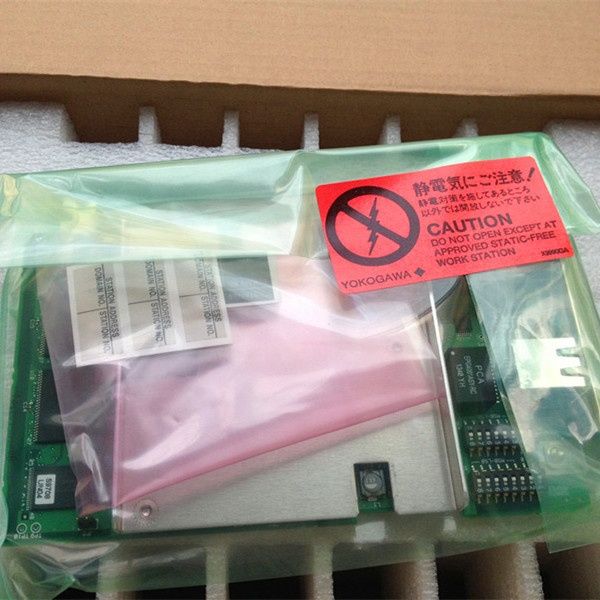

IN STOCK YOKOGAWA VI702 Vnet/IP Interface Card
Yokogawa DCS Vnet/IP Interface Card VI702
GENERAL
By installing the control bus interface card into the PCI
Express slot of the PC/AT compatible computer, the
computer is connected to Vnet/IP.
Yokogawa DCS Vnet/IP Interface Card VI702
FUNCTION
Interface between the PCI Express and Vnet/IP
SPECIFICATIONS
For conforming standards of the CENTUM VP system, see “System Overview (Vnet/IP Edition)” (GS 33K01A10-50E).
Communication Speed
1 Gbps Full Duplex
Connection Specifications
Cable: CAT5e (Enhanced Category 5 cable), UTP
Transmission: 1000BASE-T compliance
Connector: RJ45 connector
Max. distance: 100 m (Distance between VI702 and Layer 2 switch)
PCI Express Specifications
Applicable revision:
PCI Express CEM Specification 1.0a
x1, 2.5 GT/s signaling
This card can be installed in a PCI Express slot (x1 to x16).
This card cannot be installed in a PCI slot.
Voltage
Power supply voltage: 3.3 V ± 9 %
Current Consumption
Max. 2.5 A
Weight: Approx. 0.18 kg
External Dimensions
111.15 x 167.65 (mm)
Full-height, Half-length
Regulartory Compliance
EMC Standards:
[CE Marking]
[C-Tick Marking]
[KC Marking]
Yokogawa DCS Vnet/IP Interface Card VI702
COMPATIBILITY WITH VI701
The Vnet/IP interface of VI702 is compatible with VI701
card so that the VI701 card and VI702 card can be
installed together in a same bus.
Moreover, setting the domain number and station
number of a VI702 card can be performed in a same
way as for a VI701 card.
Yokogawa DCS Vnet/IP Interface Card VI702
MODEL AND SUFFIX CODE
Model Description
VI702 Vnet/IP Interface Card
