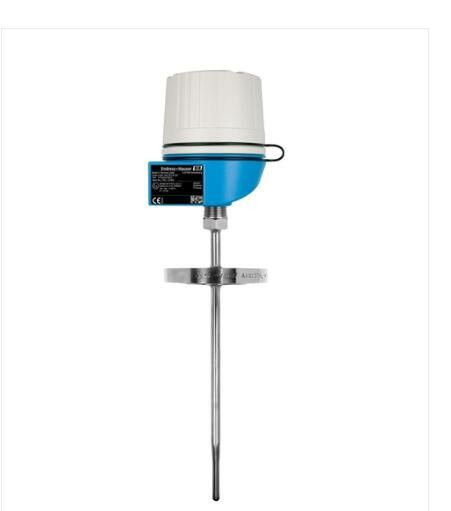

Endress + Hauser Omnigrad S TC61 Explosion-proof thermocouple thermometer

Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry

The robust thermometer is designed for use in demanding and safety relevant applications e.g. in the Chemical,

Oil & Gas and Energy industry. Harsh environments, corrosive substances and highest pressures can be handled

by the use of robust protection tubes and special materials. An optional head transmitter with all common

communication protocols makes the device ready to use with enhanced measurement accuracy and reliability

compared to directly wired sensors. Flexible configuration possible.

Benefits

Types of protection for use in hazardous locations: Intrinsic safety (Ex i.a.), flameproof (Ex d), non-sparking (Ex nA)

High degree of insert compatibility and design as per DIN 43772

Extension neck to protect the head transmitter from overheating

Fast response time with reduced/tapered tip form

High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths

Field of application

Heavy duty applications

Oil & Gas processing industry

Measuring range: –40 to 1 100 °C (–40 to 2 012 °F)

Static pressure range up to 75 bar dependent on the used process connection

Protection class: IP68
