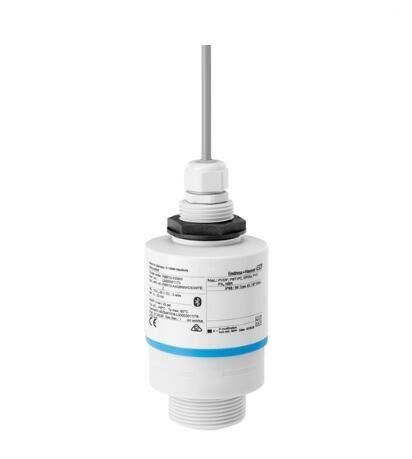

Endress + Hauser Radar measurement Time-of-Flight Micropilot FMR10-AAQBMWDEWFE2+R7

Level measurement in liquids for water & wastewater and utilities in all industries

Micropilot FMR10 offers continuous non-contact level measurement and is a perfect application fit for the water & wastewater industry

and utilities across all industries. FMR10 belongs to the first radars with Bluetooth® commissioning, operation and maintenance app.

Signal curves can be shown via app on every Bluetooth®-enabled smartphone or tablet (iOS, Android).

With the compact design, thanks to unique chip, the device is ideal for limited space applications.

Benefits

Non-contact radar with Bluetooth® commissioning, operation and maintenance app

Most compact radar due to unique radar chip design offering perfect fit in limited space applications

Best price-performance-ratio radar

Perfect application fit for water & wastewater and utilities in all industries (IP66, IP68 / NEMA4x /6P)

Full PVDF body to resist outdoor conditions, sealed wiring and fully potted electronics eliminates

water ingress and allows operation under harsh environmental conditions

Easy setup with three main parameters suits for most applications

Simple, safe and secure wireless remote access via Bluetooth®

Field of application

Radar for continuous level measurement in liquids. For use in storage tanks, open basins, pump/lift stations or sewer management.

Process connections: Threads

Process temperature: -40 to +60°C (-40 to +140°F)

Process pressure: -1 to +3bar (-14.5 to +43psi)

Maximum measuring range: up to 8m (26ft) with mounted flooding tube protection

Accuracy: ±5mm (0.2")

Measuring frequency: 26GHz
