HONEYWELL STT700 STT700-1H-A10-UU0000-00A1-11C-C-F1-00000 SmartLine Temperature Transmitter

Introduction

Part of the SmartLine® family of products, the SmartLine STT700 is a high performance temperature transmitter

offering high accuracy and stability over a wide range of process and ambient temperatures. SmartLine easily meets

the most demanding needs for temperature measurement applications.

Best in Class Features: The STT700 is single or a dual input temperature transmitter that supports millivolt,

thermocouple and RTD sensors. It is available with either HART or DE protocol output. High performance

o Digital accuracy up to 0.15 Deg C for Pt100

o Stability up to ±0.05% of URL per year for ten years

o 500 mSec update time (single input)

o 1 Sec update time (dual input)

Communications/Output Options:

o 4-20 mA DC

o HART ® (version 7.0)

o Honeywell Digitally Enhanced (DE)

All transmitters are available with the above listed output and communications protocol option.

The STT700 accommodates a Standard alphanumeric LCD display. Standard LCD Display Features

o Modular (may be added or removed in the field)

o 0, 90, 180 & 270 degree position adjustments

o Deg C, F, R and Kelvin measurement units

o 2 Lines 6 digits PV (9.95H x 4.20W mm), 8 Characters

o Built in Basic Device Configuration through internal buttons – Range/Engineering Unit/Loop Test/ Loop Calibration/Zero-Span Setting

o Write Protect indication

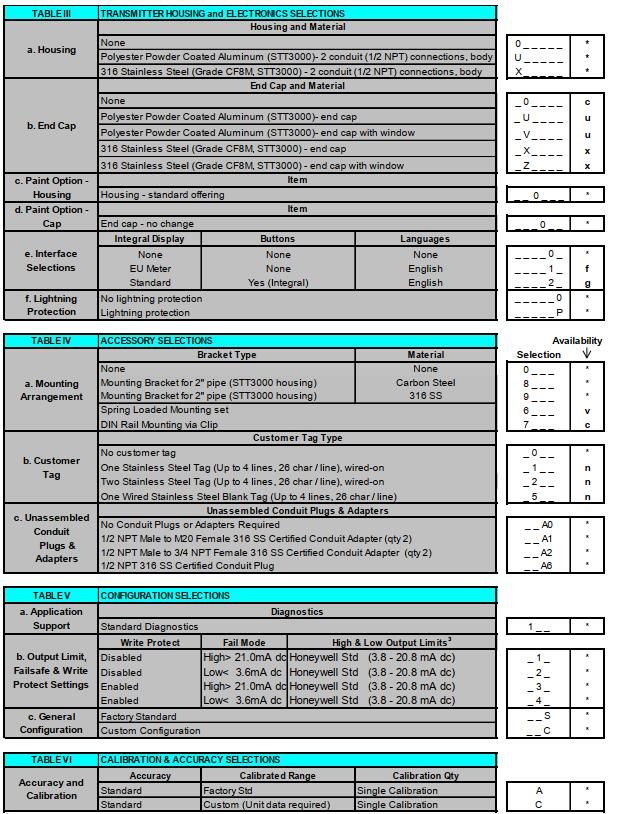

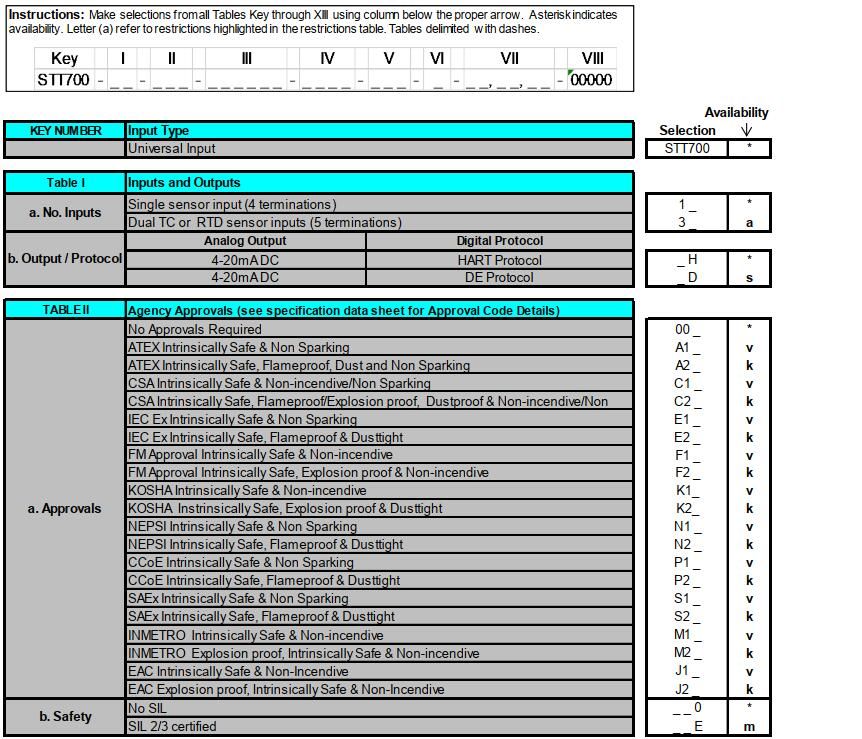

Model No Example

STT700-1D-A10-000000-11C-C-F1,F5

STT700-1H-A20-UV0010-91A1-11C-C-F5,F1-00000

STT700-1H-F20-UU0000-80A0-11S-A-F3-00000

STT700-1H-A10-UU0000-00A1-11C-C-F1-00000

STT700-1D-A10-000000-00A0-11S-A-W2,F1-00000

STT700-1H-A20-UV0020-80A1-11C-A-F1-00000

STT700-1H-E20-UV002P-91A1-11S-A-F3-00000

STT700-1H-000-UU0000-81A0-11S-A-W2,F1-00000

STT700-1H-A20-XZ001P-91A6-11C-C-F1-00000

STT700-1H-000-000000-00A0-11S-A-00-00000

STT700-3H-000-000000-00A0-11S-A-00-00000

STT700-1H-F2E-UV001P-91A0-11C-A-F5,F1-00000

STT700-1H-A1E-00000P-00A0-11S-A-FE-00000

STT700-1H-C10-000000-00A0-11S-A-00-00000

STT700-1H-A10-000000-00A0-11S-A-F1-00000

STT700-3H-A10-000000-00A0-11C-A-F1-00000

STT700-1H-A10-000000-60A0-11C-C-F1-00000

STT700-1H-A10-UU0000-00A1-11C-C-F1-00000

STT700-1H-A20-UU0000-00A1-11S-A-F5,F1-00000
