Original HONEYWELL STT17H-00-0-T00-000-D00-MH STT 3000 Smart Temperature Transmitter Series STT170 STT171 STT173 STT17H STT17F STT17C
- Product description
- Contact us
HONEYWELL STT17H-00-0-T00-000-D00-MH STT 3000 Smart Temperature Transmitter Series STT170 STT171 STT173 STT17H STT17F STT17C
The Honeywell STT170 series of programmable temperature transmitters provides cost effective solutions for temperature
monitoring applications. Compared to direct-wired temperature sensor monitoring points, the STT170 series of transmitters
delivers increased accuracy, safety and reliability while also reducing wiring costs. These transmitters automatically linearize
the temperature output signal bounded by the upper range value and lower range value established by the user. In addition, the
user can program high or low limit alarms to activate in the case of sensor failure.
STT171 FEATURES
Analog 4-20 mA output
RTD or Ohm input
DIN form B headmount
NAMUR NE43 sensor error response
Configurable using STT17C configuration tool and PC
STT173 FEATURES
Analog 4-20 mA output
RTD, T/C, Ohm or mV input
DIN form B headmount
NAMUR NE43 sensor error response
Configurable using STT17C configuration tool and PC
Galvanic isolation
STT17H FEATURES
HART™/4-20 mA output
RTD, T/C, Ohm or mV input
Single or dual (difference or average) sensor input
DIN form B headmount
HART Multidrop capable
NAMUR NE43 sensor error response
Configurable using STT17C configuration tool and PC or HART field communicator
Galvanic isolation
STT17F FEATURES
FOUNDATION™ fieldbus protocol
RTD, T/C, Ohm or mV input
Single or dual (difference, average or redundant) sensor input
DIN form B headmount
Function blocks: 2 analogue, 1 PID
FISCO certified
Basic or LAS capability
Galvanic isolation

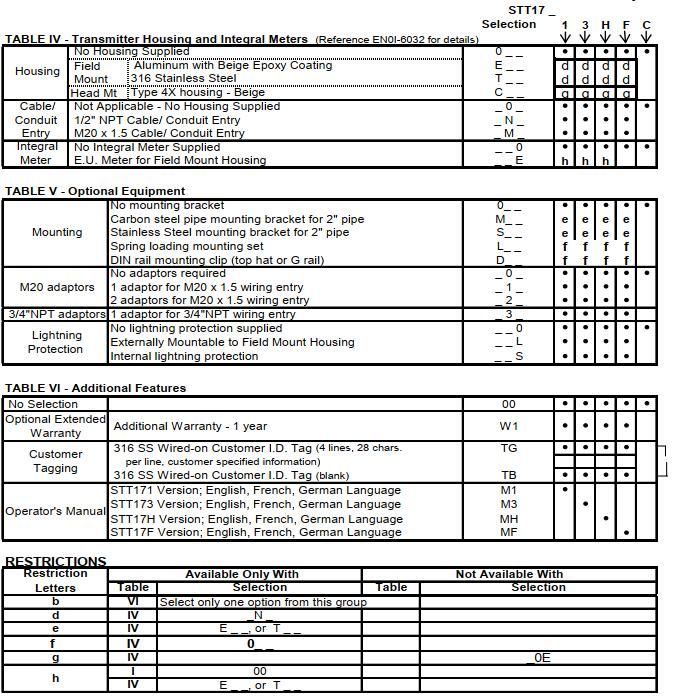

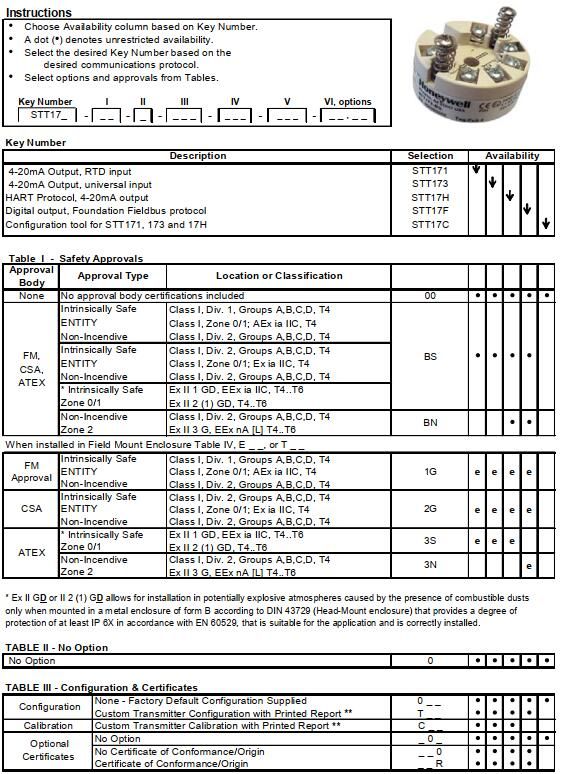

HONEYWELL STT 3000 Temperature Transmitter Model Selection Series STT170
Model No Example
STT173-BS
STT17H-BN
STT17H-00-0-000-L00-00
STT17H-BS-0-000-L00-00
STT17H-BS-0-000-000-L00-00
STT17H-3S-0-T00-000-D00-MH
STT17H-00-0-T00-000-D00-MH
