ABB AT100/S6/LW/A/R1/HO/M4A/X/FM/CF/F1B Magnetostrictive Level Transmitter AT100
The AT100 is Based Upon the Magnetostrictive Principle.
The Sensing Tube Contains a Wire, which is Pulsed at Fixed Time Intervals and the Interaction of the Current
Pulse with the Magnetic Field Created by the Magnetic Float.
Features
– SIL2 certified IEC 61508*
– High accuracy: .01% of full scale
– Superior piezo ceramic sensor (Patent # 5,473,245)
– Local indication with LCD display
– Never requires re-calibration: set it & forget it
– Dual compartment housing with separate field terminal compartment
– Loop powered to 75 ft./22 m probe length
– Total and/or interface level measurement
– Pressure to 3000 psig/207 bar, Std. 1800 psig/124.1 bar
– Temperature range: -320 to 800º F (-196 to 427ºC) with options
– Field replaceable/upgradable electronics module
– Built in RFI/EMI filter
– Digital communications
Options
– Two level indications
– Temperature indications
– Foundation Fieldbus output
– Honeywell DE output
– Glass viewing window
– 316L stainless steel enclosure
– 20 point strapping table

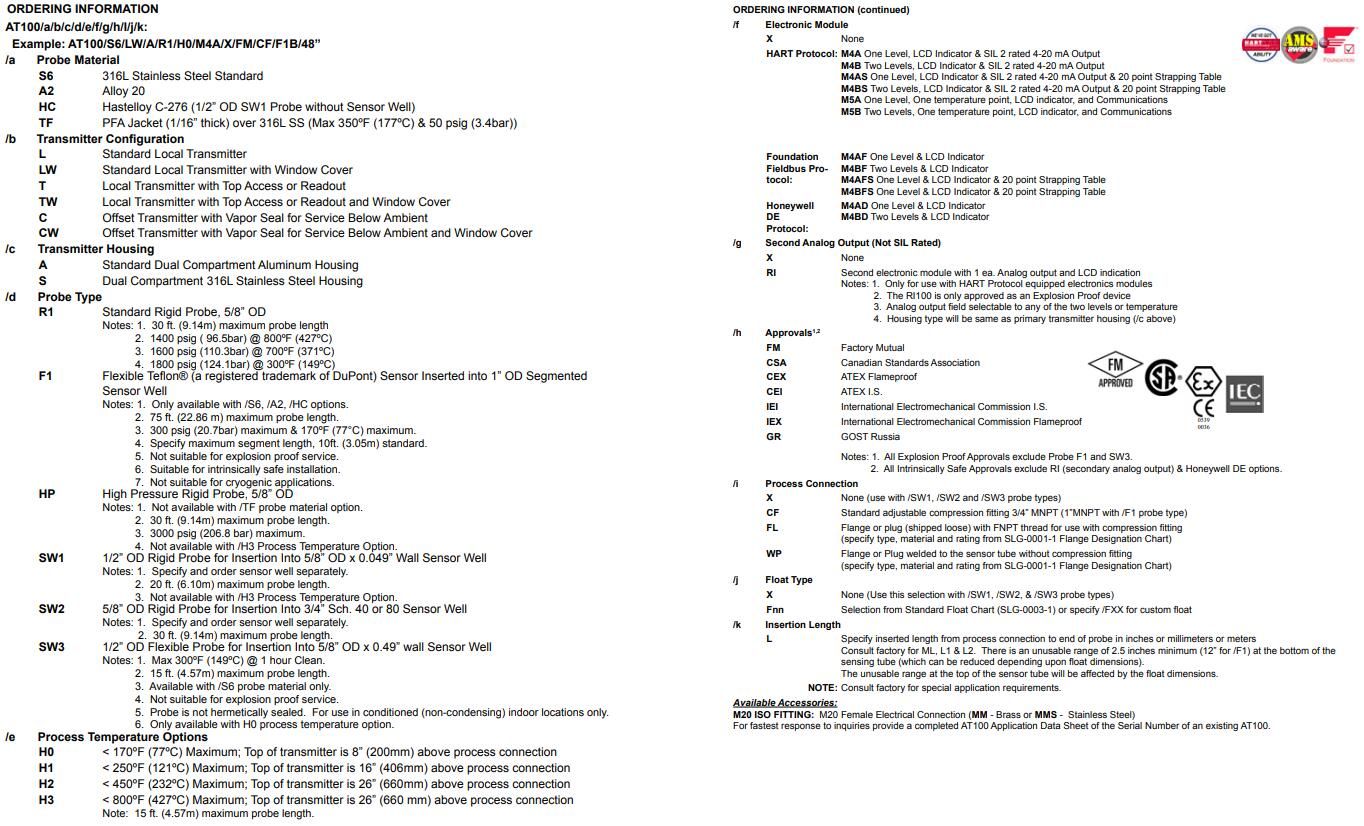

Model No Example
AT100/S6/LW/S/R1/H0/M4A/X/FM/CF/F23T-1
AT100/S6/LW/A/R1/H2/M4A/X/FM/CF/F17B
AT100/S6/LW/A/R1/HO/M4A/X/FM/CF/F1B
