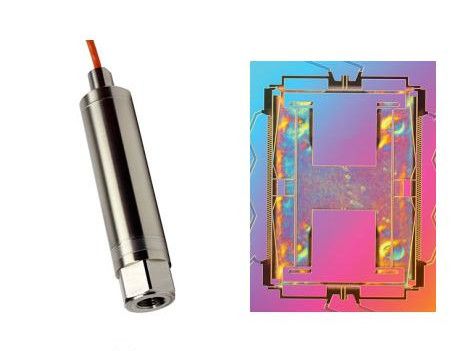

GE Druck RPS 8000/DPS 8000 High Accuracy Resonant Pressure Sensor

The RPS/DPS 8000 is the first product to incorporate the exciting new TERPS technology.

TERPS is a resonant silicon pressure sensor technology platform that provides an order of magnitude greater accuracy

and stability than current pressure measurement technologies available.

The new TERPS technology also extends the pressure range capability to high pressures and, by incorporating true pressure

media isolation, greatly improves its suitability for use in harsh environments.

In addition to providing the performance and packaging improvements available with TERPS, the RPS/DPS 8000 product

line takes advantage of best practices to offer a wide range of pressure and electrical connections to enable a level of

customization for your specific requirements never before available in the performance class of this sensor.

The combination of the power of the TERPS technology and the quality, reliability and flexibility of the RPS/DPS 8000

Series offers a truly unique solution for high accuracy and high stability pressure measurement requirements.

Features:

• High Precision, ±0.01% FS over compensated temperature range

• High Stability, ±100 ppm FS/year

• Wide temperature range, up to -40°C to +125°C (-40° to 257°F)

• Media isolated construction, suitable for use in harsh environments

• Multiple Output configurations, RS-232, RS-485, USB 2.0, CAN Bus, Frequency & Diode (TTL)

• Wide selection of pressure & electrical connections to suit specific requirements

Specifications

Base Pressure Ranges

• 0 to 2 bar (0 to 30 psi) absolute

• 0 to 7 bar (0 to 100 psi) absolute

• 0 to 14 bar (0 to 200 psi) absolute

• 0 to 20 bar (0 to 300 psi) absolute

• 0 to 35 bar (0 to 500 psi) absolute

• 0 to 70 bar (0 to 1000 psi) absolute

Note: Values in psi are approximate

The base range selected is the next range up from the requested calibrated range.Units are converted to

bar for selection; e.g., 30 psi = 2.07 bar. A 7 bar base pressure range will be selected.

Calibrated Ranges

Any zero-based range between 1 and 70 bar (14.5 to 1000 psi) can be specified. (Performance will be of the

full scale of the base pressure range selected.) Barometric ranges are available in the RPS/DPS 8100

series. The lowest calibrated pressure is 35 mbar absolute.

Overpressure

1.5X FS

Sensor Failure Pressure

2.0X FS

Pressure Containment

• Ranges to 7 bar (100 psi), 70 bar (1,000 psi)

• Ranges to 70 bar (1,000 psi), 200 bar (3,000 psi)

Pressure Connector

Available Options are:

• G1/4 Female

• G1/4 Male Flat

• G1/4 Male 60° Internal Cone

• G1/8 Male 60° Internal Cone

• 1/4 NPT Female

• 1/4 NPT Male

• 1/8 NPT Male

• M20 x 1.5 Male (3mm bore)

• M14 x 1.5 60° Internal Cone

• M12 x 1 Internal Cone

• 7/16-20 UNF Male 74° External Cone

• G1/2 Male

• G1/4 Quick Connect

• 1/2 NPT Male

• G1/4 Male Flat Long

• 7/16-20 UNF Female

• Depth Cone (G1/4 Female)

• 7/16-20 UNF Male Short Flat

• 3/8-24 UNJF

• Other pressure connectors may be available.

Contact GE to discuss your requirement

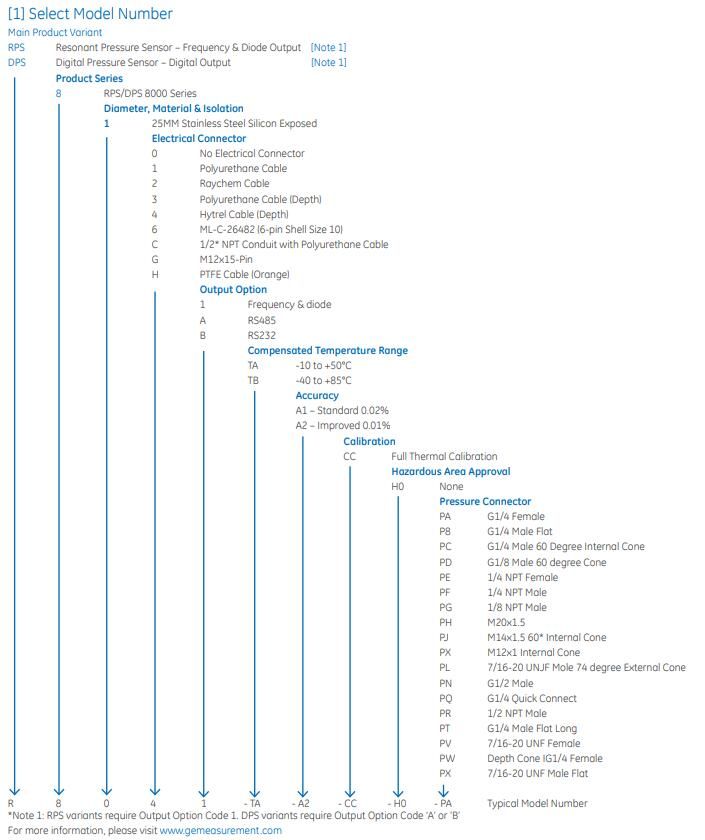

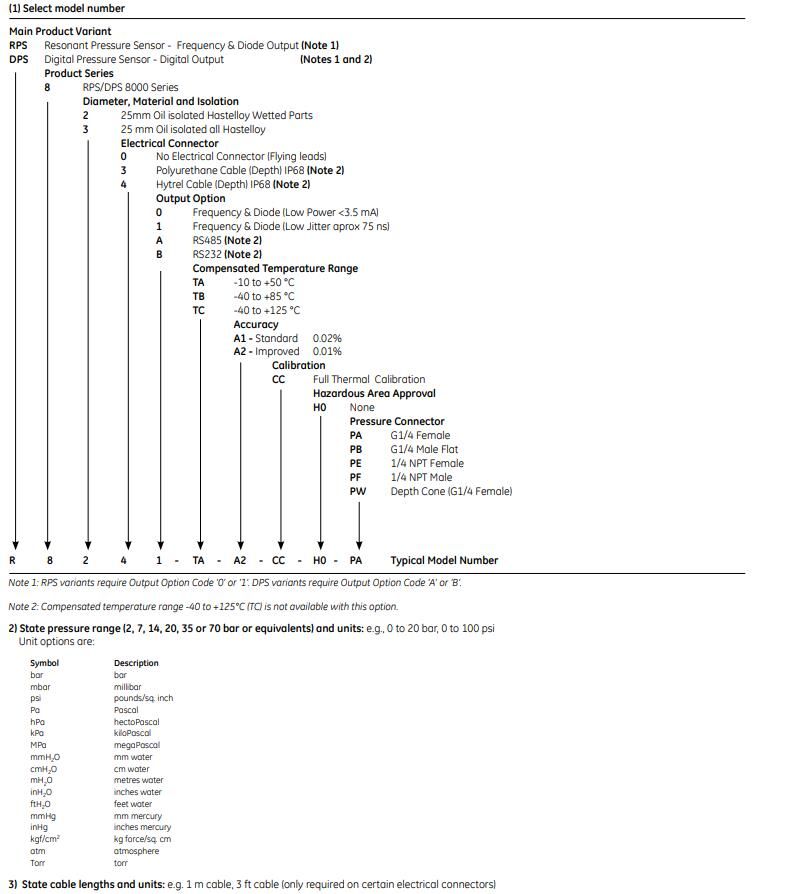

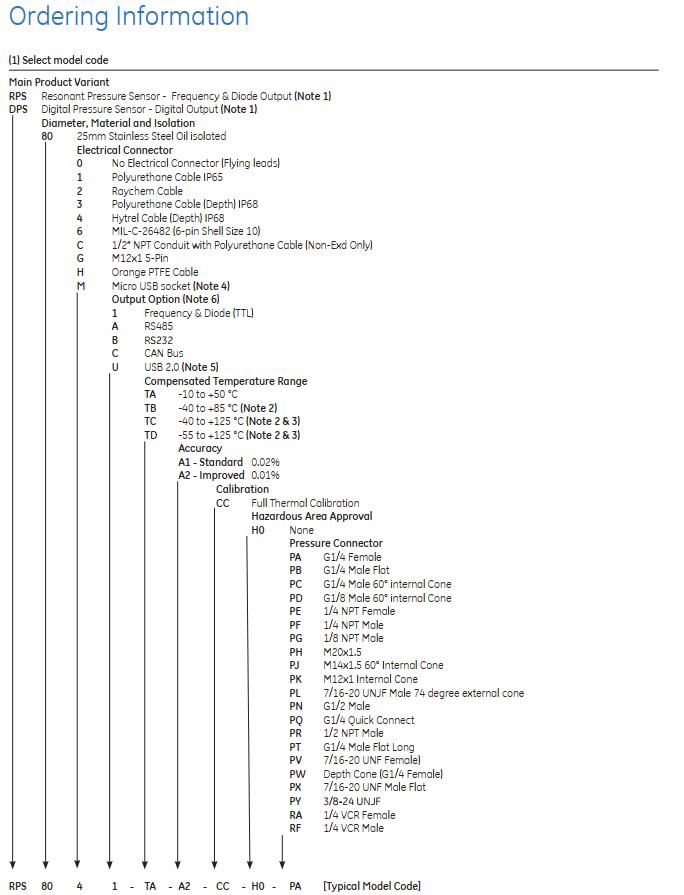

Typical order examples:

RPS 8011-TA-A1-CC-H0-PA, 0-7 bara, 5 m cable

DPS 806A-TB-A2-CC-H0-PL, 0-1,000 psia

Typical order examples:

RPS 8301-TC-A2-CC-H0-PA,70 bara

DPS 823A-TA-A1-CC-H0-PW, 2 bara, 10 m cable
