GE DRUCK UPS III IS Druck Loop Calibrator

Features

• ATEX/IEC intrinsically safe

• Measure or source 0 to 24 mA

• Accuracy 0.015% of reading

• Dual mA and % readout, linear or flow

• Step, span check, valve check, ramp

• 50 VDC measurement and continuity

• Hart® compatible

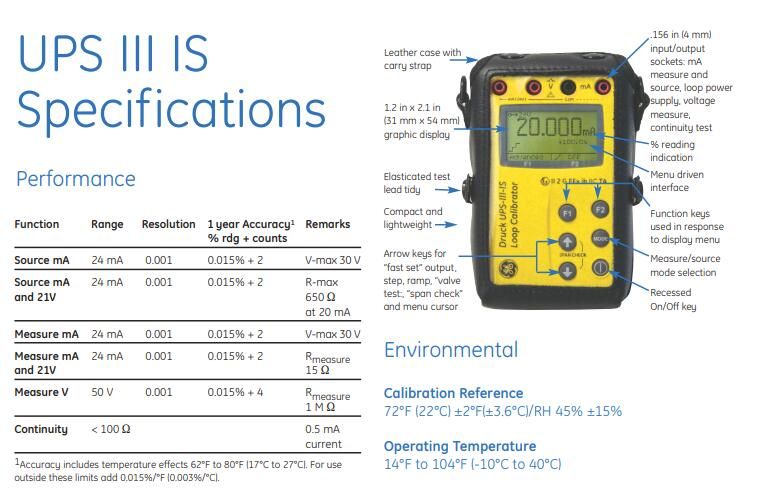

The UPS III IS is a rugged and extremely compact loop calibrator. Measuring 3.5 in x 5.5 in x 1.7 in (90 mm x 140 mm x 42 mm)

and weighing just 16.2 oz (460 g). It is an essential tool for loop testing, instrument maintenance

and valve set-up, with an easy to read display and simple to use time saving features .

Electrical

Power Supply : 4 x 1.5 V AA-size alkaline batteries (see certificate for type)

Battery Life : 60 hours in measure mode, 14 hours at 12 mA

Auto Power Down : 30 minutes after last key press

Low Battery Warning : Battery symbol displayed

Open Loop : Flashes “open loop”

Loop Resistance High : Flashes “check loop S”

Out of Range : Displays <<<< (under), >>>> (over)

Hart Resistor : 220 S menu selectable loop resistor

Relative Humidity : 0% to 90% non-condensing

Physical

Housing Material : High impact ABS

Dimensions (w x h x d) : 3.5 in x 5.5 in x 1.7 in (90 mm x 140 mm x 42 mm)

Weight : 16.2 oz (460 g) including batteries and leather case

Display : Graphic LCD, 1.2 in x 2.1 in (31 mm x 54 mm)

Electrical Terminals : Gold plated, 4 mm sockets

Supplied As Standard

The UPS III IS is supplied as standard with leather case and carry strap, a certificate of calibration, user guide,

test leads, and a set of alkaline batteries.
