GE DRUCK DPI 104 Druck Digital Test Gauge

Features

• 0.05% full scale (FS) accuracy

• Pressure ranges to 20,000 psi (1400 bar)

• Eleven selectable pressure units

• Large, easy-to-read display with five-digit resolution

• % pressure indication and additional bar graph for quick visual reference

• Temperature compensated accuracy from 14°F to 122°F (-10°C to 50°C)

• 0 to 5V analog output

• Pressure switch test

• Minimum/maximum, tare and alarm functions

• IDOS compatible and RS232 serial interface

• Free of charge monitoring and control software

• Stainless steel or Inconel pressure cavity for aggressive media

The DPI 104 is a microprocessor-controlled digital pressure gauge that combines precision and functionality in a compact,

robust and simple-to-use package. The DPI 104 matches advanced silicon sensor technology with several convenient design

features, resulting in an accurate, versatile yet affordable digital test gauge. Supplied as a stand-alone process indicator or in a kit

with the widely proven Druck hand pumps, the DPI 104 provides a reliable and economic solution for a wide

range of pressure sensing applications.

DPI 104 Specifications

Accuracy

0.05% FS including non-linearity, hysteresis,

repeatability and temperature effects from 14°F to

122°F (-10°C to 50°C)

Resolution : Maximum five digits

Burst Pressure

Burst pressure is 2x working pressure (exception, 20,000 psi (1400 bar); burst pressure 29,000 psi (2000 bar).

Selectable Pressure Units

kPa, MPa, kg/cm2, psi, mbar, bar, inHg, inH2O,

Display

• Pressure reading: 5 digits with 0.5 in (12.7 mm character height

• Full scale indicator: 2.5 digits with 0.25 in (6.35 mm) character height

Pressure Bar Graph

In addition to the numeric pressure indication, the DPI 104 LCD display contains a circular twenty segment bar graph to

provide the user with a quick visual estimation of pressure from 0 to 100% full scale output.

The bar graph increments represent 5% of the userselectable range.

mH2O, mmH2O and mmHg

Options

A) DPI 104 external power supply unit with lead p/n 191-350

B) PC serial lead for connection to PC p/n IA4090-2-V0. (Note: Option A is recommended with PC serial lead.)

E) Mating plug for eight-pin socket for switch test, voltage output, external power and alarm function

    (customers wishing to make their own connections/ leads) p/n 1S-04-0027

F) 9/16 x 18 UNF to 3/8 BSP adapter for connection to PV 212 p/n 182-190

G) DPI 104 UPM power lead for use with UPM IDOS Sensor p/n IA4101-1-V0. Requires Option H.

H) Universal 12V external power supply for use with the UPM IDOS remote sensor p/n 191-129

Ordering Information

Please state the following (where applicable)

1. Model DPI 104

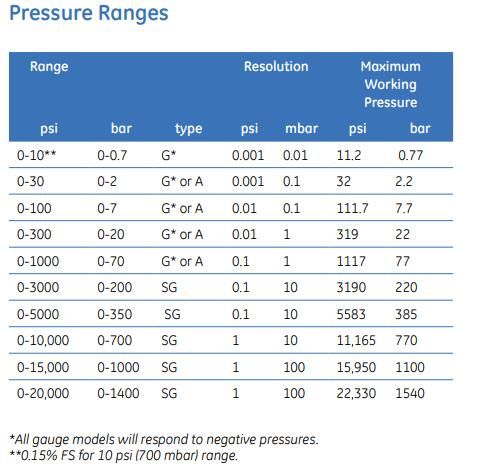

2. Pressure range, type (G, A or SG) and pressure connections required.

3. Options, if required. Please order as separate items.
