GE DRUCK DPI 705ISR (remote sensor) Druck Handheld Pressure Indicators

The Druck DPI 705 Series of handheld pressure indicators combine tough and rugged design with accurate and reliable pressure

measurement. Compact, robust and lightweight, the DPI 705 Series is designed for single handed operation and provides many essential

features required for routine maintenance and system troubleshooting.

Features

• Ranges 0 to 70 mbar (1 psi) through to 700 bar (10,000 psi)

• 0.1% full scale (FS) accuracy

• Rugged, lightweight handheld design

• Leak test, tare, max/min and filter

• Intrinsically safe version

• Optional pneumatic and hydraulic hand pumps

DPI 705

• Impact resistant, sealed to Type 12/IP54

• Clear high resolution LCD

• Optional carrying case with belt loop

• Long battery life

• Integral desk stand and hanger Improves Test Efficiency

• No warm up time

• 14 pressure units

• One minute leak test

• Ambient temperature measurement

The calibration tools required to comply with quality assurance programs such as ISO9000 put ever

increasing demands on maintenance budgets. The DPI 705 Series, used in conjunction with pneumatic or hydraulic

pressure generators, is a simple, low cost solution complementing the wide range of Druck portable process calibrators .

Special Features

Pressure Units

psi, inHg, inH2O (4°C, 20°C and 60°F),

ftH2O (4°C, 20°C and 60°F), mmHg, mHg, mbar, bar,

mH2O, Pa, hPa, KPa, MPa, Kgf/cm2

Calibration Units

mbar, bar, psi, kPa, mPa, hPa, Kgh/cm2

Leak Test

Standard 60 second leak test.

Zero

Zero pressure correction.

Tare

0 to 100% FS zero offset capability.

Filter

10 reading rolling average for unstable

pressures.

Alarm

Adjustable high pressure alarm with visual and

audible warning.

Ambient Temperature

°C and °F reading of local condition ±1.5°C (±3°F).

Calibration

Used with the optional pneumatic or hydraulic pumps, the DPI 705 Series becomes a low cost

calibration tool for gauges and indicators.

Power Management

Low battery indicator and selectable ‘auto off’.

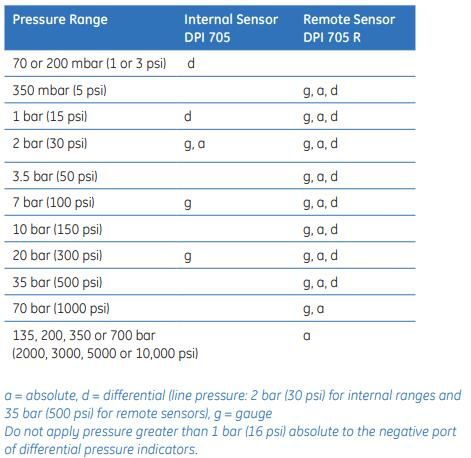

Pressure Ranges

DPI 705 Internal Sensor Version Includes an internal sensor and has a 1/8 in NPT female or G 1/8 female (with 4 mm ID hose

adaptor) pressure connector. Most internal ranges are available from stock.

DPI 705R Remote Sensor Version Has an integral cable connector, a 3 ft (1 m) mating

cable and a 1/4 in NPT female or G 1/4 female pressure connector.

Accuracy

±0.1% FS non-linearity, hysteresis and repeatability.

Environmental

Temperature Performance Averaged

0°C to 50°C (32°F to 122°F)

• ±0.02% reading/°C (±0.01% rdg/°F)

• For absolute ranges < = 1 bar (15 psi) add ±0.05% FS/°C

(±0.025% FS/°F)

• For absolute ranges > 1 bar (15 psi) add ±0.02% FS/°C

(±0.01% FS/°F)

• Calibrated range: 0°C to 50°C (32°F to 122°F)

• Operating range: -10°C to 50°C (15°F to 122°F)

Humidity

0 to 95% non condensing.

Overpressure

Safe to 2 x FS. Display flashes at 110% FS.

Media Compatibility

• Internal sensor: stainless steel, except positive differential non-corrosive fluid and negative differential dry gas.

• Remote sensor: stainless steel, except negative differential non-corrosive fluid.

Safety Conformance

EN61326-1, CE marked

Intrinsically Safe Version

• IS Class I, Groups A, B, C & D, T4 Exia; Class I, Zone

0, AEx/Ex ia IIC T4 Ga (-10°C ≤ Ta ≤ +50°C) to CSA

Std. 157-92, UL 913 (7th Ed.), CAN/CSA-C22.2 No.

60079-0:11, CAN/CSA-C22.2 No. 60079-11:11, ANSI/

UL 60079-0:09 and ANSI/UL 60079-11:09.

• Ex ia IIC T4 Ga (-10°C ≤ Ta ≤ +50°C) to ATEX IEC

60079-0:2011 and EN 60079-11:2012

Display: 13mm LCD with 99999 readout

Weight :<500 g

Dimensions : 190 x 90 x 36 mm

Battery : 3 x Alkaline cells

Pneumatic and Hydraulic Test Kits

PV210 Low Pressure Pneumatic Hand Pump

PV211 Pneumatic Hand Pump

PV212 High Pressure Hydraulic Hand Pump

PV411A Multifunction Hand Pump

Accessories

The DPI 705 and DPI 705R are supplied with a user guide and calibration certificate as standard.

Ordering Information

Please state the following (where applicable)

1. Part number

DPI 705 (internal sensor)

DPI 705R (remote sensor)

For Intrinsically safe version order and state CSA or ATEX:

DPI 705IS (internal sensor)

DPI 705ISR (remote sensor)

2. Pressure range

3. Calibration unit - if not bar or mbar: psi, kPa, mPa, hPa, Kgf/cm2

4. Pressure reference:

Gauge

Absolute

Differential

5. Pressure connection:

1/8 NPT female (internal sensor)

G 1/8 female (internal sensor)

1/4 NPT female (remote sensor)

G 1/4 female (remote sensor)

6. Options as required

DPI 800 Pressure Indicator

DPI 802 Pressure Indicator

DPI 811 RTD Calibrator

DPI 812 RTD Loop Calibrator

DPI 821 Thermocouple Calibrator

DPI 822 Thermocouple Loop Calibrator

DPI 832 Druck Electrical Loop Calibrator

DPI 841 Frequency Loop Calibrator

DPI 842 Frequency Loop Calibrator

DPI 880 Druck Multi-function Calibrator

DPI 610 Portable Pressure Calibrator

DPI 615 Portable Documenting Pressure Calibrator

DPI 610/615PC Pneumatic Calibrator

DPI 610/615HC Hydraulic Calibrator

DPI 610/615LP Low Pressure

DPI 610/615I Indicator

DPI 705 Series Druck Handheld Pressure Indicators

DPI 705R (remote sensor) Handheld Pressure Indicators

DPI 705IS (internal sensor) Handheld Pressure Indicators

DPI 705ISR (remote sensor) Handheld Pressure Indicators
