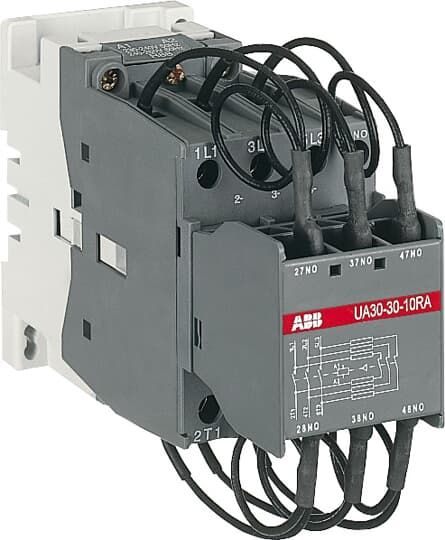

ABB UA30-30-10RA 230-240V 50Hz / 240-260V 60Hz Contactor

General Information

Extended Product Type:UA30-30-10RA 230-240V 50Hz / 240-260V 60Hz

Product ID:1SBL281024R8810

EAN:3471522302885

Catalog Description:UA30-30-10RA 230-240V 50Hz / 240-260V 60Hz Contactor

Container Information

Package Level 1 Units:1 piece

Package Level 1 Width:135 mm

Package Level 1 Depth / Length:155 mm

Package Level 1 Height:63 mm

Package Level 1 Gross Weight:0.81 kg

Package Level 1 EAN:3471522302885

Package Level 2 Gross Weight:19.44 kg

Environmental

Ambient Air Temperature:Close to Contactor for Storage -60 ... +80 °C

Near Contactor for Operation in Free Air (Uc) -40 ... +70 °C

Near Contactor for Operation in Free Air (0.85 ... 1.1 Uc) -40 ... +55 °C

Climatic Withstand:acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II

Maximum Operating Altitude Permissible:3000 m

RoHS Status:Following EU Directive 2011/65/EU

Rated Operational Voltage:Auxiliary Circuit 690 V

Main Circuit 690 V

Rated Frequency (f):Supply Circuit 50 60 Hz

Conventional Free-air Thermal Current (Ith):acc. to IEC 60947-5-1, q = 40 °C 16 A

Rated Operational Power AC-6b (Pe):(230 / 240 V) 40 °C, 50 / 60 Hz 16 KVR

(230 / 240 V) 55 °C, 50 / 60 Hz 16 KVR

(230 / 240 V) 70 °C, 50 / 60 Hz 11 KVR

(400 / 415 V) 40 °C, 50 / 60 Hz 30 KVR

(400 / 415 V) 70 °C, 50 / 60 Hz 19.5 KVR

(400 / 415 V) 55 °C, 50 / 60 Hz 27.5 KVR

(440 V) 40 °C, 50 / 60 Hz 32 KVR

(440 V) 55 °C, 50 / 60 Hz 30 KVR

(440 V) 70 °C, 50 / 60 Hz 20.5 KVR

(500 / 550 V), 40 °C, 50 / 60 Hz 34 KVR

(500 / 550 V) 55 °C, 50 / 60 Hz 34 KVR

(500 / 550 V) 70 °C, 50 / 60 Hz 25 KVR

(690 V) 40 °C, 50 / 60 Hz 45 KVR

(690 V) 55 °C, 50 / 60 Hz 45 KVR

(690 V) 70 °C, 50 / 60 Hz 32 KVR

Rated Operational Current AC-15 (Ie):(220 / 240 V) 4 A

(24 / 127 V) 6 A

(380 / 440 V) 3 A

(500 V) 2 A

(690 V) 2 A

Short-Circuit Protective Devices:Auxiliary Circuit - gG Type Fuses 10 A

gG Type Fuses 200 A

Maximum Breaking Capacity:cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 820 A

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 340 A

Maximum Electrical Switching Frequency:240 cycles per hour

Rated Operational Current DC-13 (Ie):(125 V) 1.1 / 138 A

(24 V) 6 / 144 A

(250 V) 0.55 / 138 A

(48 V) 2.8 / 134 A

(72 V) 2 / 144 A

Rated Insulation Voltage (Ui):acc. to UL/CSA 600 V

acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V

Rated Impulse Withstand Voltage (Uimp):8 kV

Rated Control Circuit Voltage (Uc):50 Hz 230 ... 240 V

60 Hz 240 ... 260 V

Coil Consumption:Average Holding Value 50 / 60 Hz 12 3 V·A

Average Holding Value 50 Hz 12 3 V·A

Average Holding Value 60 Hz 12 3 V·A

Average Pull-in Value 50 Hz 120 V·A

Average Pull-in Value 60 Hz 140 V·A

Operate Time:Between Coil De-energization and NO Contact Opening 4 ... 11 ms

Between Coil Energization and NO Contact Closing 8 ... 21 ms

Connecting Capacity Main Circuit:Flexible with Cable End 2.5 ... 4 m²

Rigid Cable 2.5 ... 6 m²

Connecting Capacity Auxiliary Circuit:Flexible with Cable End 0.75 ... 2.5 mm²

Rigid Cable 1 ... 4 m²

Degree of Protection:acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

Connecting Terminals (delivered in open position) Main Poles:M 5 (+,-) pozidriv 2 screws with 2x (5.6x6.5 mm) connector

Terminal Type:Screw Terminals

Dimensions

Product Net Width:54 mm

Product Net Depth / Length:141 mm

Product Net Height:130 mm

Product Net Weight:0.81 kg
