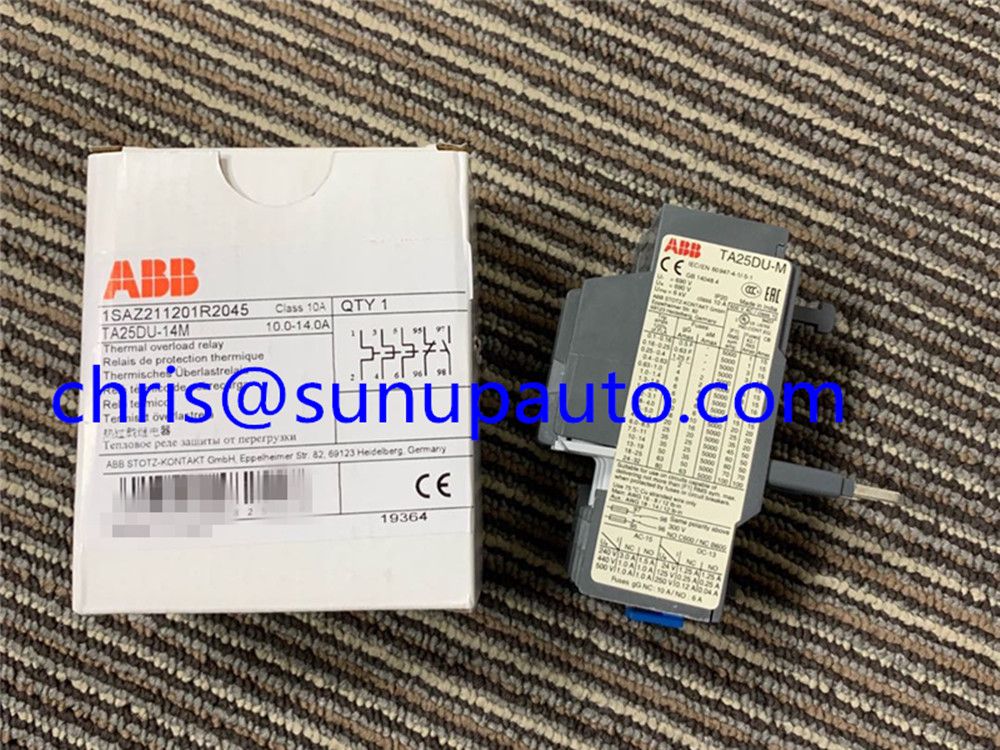

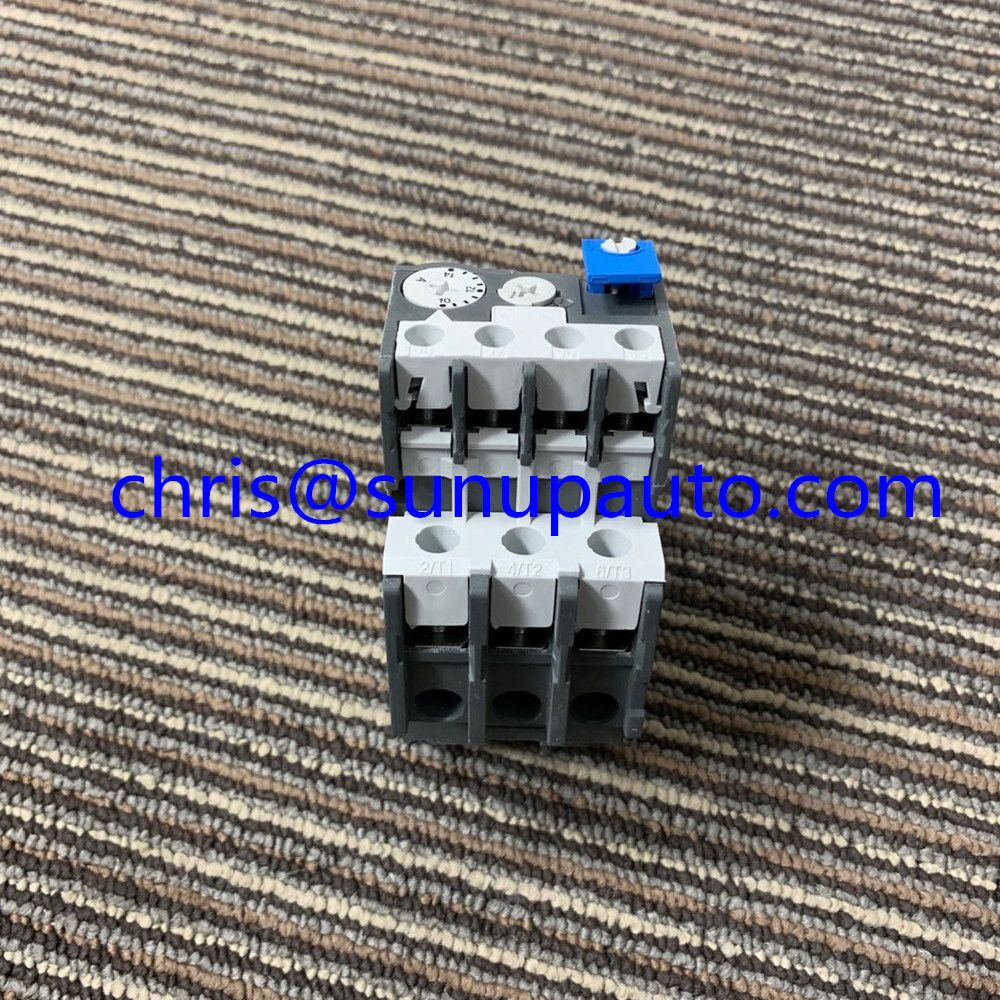

ABB TA25DU-14M ,1SAZ211201R2045 Thermal Overload Relays
TA25DU-14M
General Information
Extended Product Type:TA25DU-14M
Product ID:1SAZ211201R2045
EAN:4013614482557
Catalog Description:TA25DU-14M Thermal Overload Relays
Long Description:TA25DU-14M (10.0-14.0A) thermal overload relay is an economic electromechanical protection device for the main circuit.
It offers reliable and fast protection for motors in the event of overload or phase failure.
The device has trip class 10A. Further features are the temperature compensation, trip contact (NC), signal contact (NO),
automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication.
The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory.
Dimensions
Product Net Width:44 mm
Product Net Height:80 mm
Product Net Depth / Length:94 mm
Product Net Weight:0.15 kg
Technical
Setting Range:10.0 ... 14.0 A
Rated Operational Voltage:Auxiliary Circuit 440/500 V AC/DC
Main Circuit 690 V AC
Rated Operational Current (Ie):14 A
Rated Operational Current AC-3 (Ie):14 A
Rated Frequency (f):Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Auxiliary Circuit DC
Main Circuit 60 Hz
Main Circuit 50 Hz
Main Circuit DC
Rated Impulse Withstand Voltage (Uimp):Auxiliary Circuit 6 kV
Main Circuit 6 kV
Rated Insulation Voltage (Ui):690 V
Number of Poles:3
Number of Auxiliary Contacts NC:1
Number of Auxiliary Contacts NO:1
Number of Protected Poles:3
Conventional Free-air Thermal Current (Ith):Auxiliary Circuit NC 5 A
Auxiliary Circuit NO 5 A
Degree of Protection:Housing IP20
Main Circuit Terminals IP10
Pollution Degree:3
Connecting Capacity Auxiliary Circuit:Flexible 1/2x 0.75 ... 2.5 mm²
Rigid 1/2x 0.75 ... 4 mm²
Tightening Torque:Auxiliary Circuit 1 ... 1.3 N·m
Main Circuit 1.5 ... 1.9 N·m
Wire Stripping Length:Auxiliary Circuit 9 mm
Main Circuit 12 mm
Recommended Screw Driver:Auxiliary Circuit Pozidriv 1
Main Circuit Pozidriv 2
Mounting Position:Position 1 to 4
Power Loss:at Rated Operating Conditions per Pole 1.2 ... 2.4 W
Container Information
Package Level 1 Units:1 piece
Package Level 1 Width:98 mm
Package Level 1 Height:82 mm
Package Level 1 Depth / Length:47 mm
Package Level 1 Gross Weight:0.17 kg
