YOKOGAWA AFV10D-S41251 Field Control Unit Duplexed Field Control Unit STOCKLOT CLOSEOUTS

Processor: VR5432 (133 MHz);

Main Memory Capacity: 32 Mbyte

Memory Protection During Power Failure: Battery
Battery Back-up for Main Memory: Max. 72 hours
Battery Recharge Time: Min. 48 hours

FCU Status Contact Output : 2 terminals (NC, C)
Contact Points open during FCU failure
Contact Rating: 30 V DC, max. 0.3 A

Communication Interface: Vnet/IP Interface: Dual-redundant

Vnet/IP Communication Speed: 1 Gbps Full Duplex

Connection Specifications:
Cable: CAT5e (Enhanced Category 5 cable) or better, UTP
Transmission: 1000BASE-T compliance
Connector: RJ45 connector
Max. distance: 100 m (Distance between AFV10 and Layer 2 switch)

No. of Node Units Connectable:
Max. 14/FCU
The total number of the local and remote nodes that can be connected to FCU are 14 or less. (The local nodes: 9 or less)
LFS1500 allows up to 3 modes, and can be expanded to 14 if LFS1530 Application capacity
Expansion Package (for AFV10) is added.

No. of I/O Modules: Max. 8

Local Node Connection:
When connecting a Local Node to FCU, install ESB Bus Coupler Module (EC401) on FCU.
EC401 must be installed in slot 7 or slot 8. To make single configuration, EC401 must be installed in slot 7, and Slot 8 must be empty.

Remote Node Connection
When connecting a Remote Node to FCU, install ER Bus Interface Master Module (EB401) on FCU.
To make single configuration, EB401 must be installed in an odd-number slot, and keep empty the right side of the installed EB401.

Power Supply: (specify with Suffix Codes)
Voltage: 100-120 V AC, Frequency: 50/60 Hz
Voltage: 220-240 V AC, Frequency: 50/60 Hz
Voltage: 24 V DC

Power Consumption
100-120 V AC: 200 VA
220-240 V AC: 230 VA
24 V DC: 5.5 A

Weight:
Approx. 7 kg (AFV10S)
Approx. 8 kg (AFV10D)

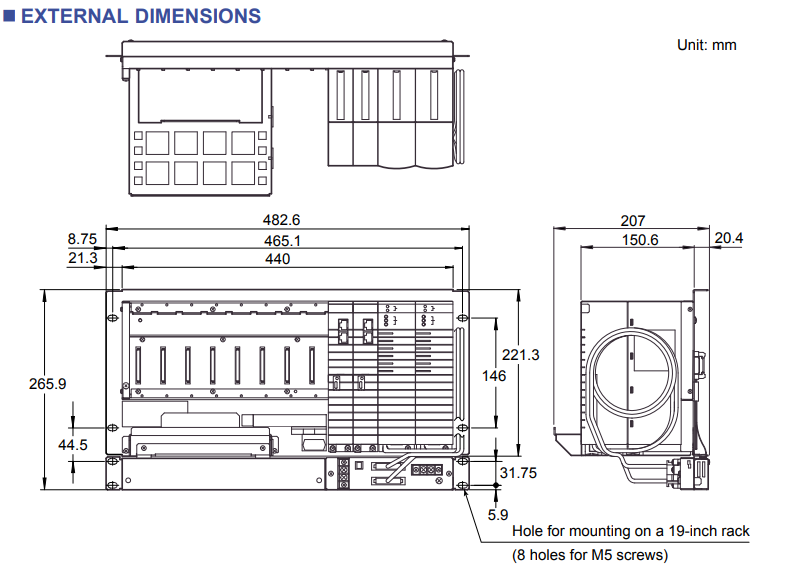

Mounting:
19" Rack Mounting:
Rack mount (8 x M5 screws)
Insulation bush (accessory)

Connection
Power Supply: M4 screw terminal connection
Grounding: M4 screw terminal connection
Contact Output: M4 screw terminal connection
Network: Connect CAT5e (Enhanced Category 5 cable) to Layer 2 switch.
