IN STOCK YOKOGAWA AIP830 Operation Keyboard AIP830-111 for Singleloop Operation Brand New
STANDARD SPECIFICATIONS
For installation specifications and environmental conditions, which are common to the systems, refer to the GS
“System Overview” (GS 33J01A10-01EN).
• Type: Flat keyboard (Sound Function: USB Speaker)
• PC Interface:
Interface Connector: USB A type x 2 (*1)
Conformable USB standard
Operation Keyboard Function : USB 2.0 (Full-speed, Bus-powered)
Sound Function : USB 1.1 (Full-speed, Bus-powered)
• Input Voltage: 5 V±5 % (Supplied from USB Port of PC)
• Maximum Consumption Current: 1 A
• Weight: Approx. 2.0kg (Without VESA Bracket), Approx. 2.5 kg (With VESA Braceket) (*2)
• Chassis Color: Black (Equivalent to Munsell No. N1.5)
• AIP830 belongs to IEC 61010-1 installation category Class I (A device not directly connected with the main power supply).
• Operating Environment
Ambient temperature:
5 to 40 °C (for normal operaiton)
-20 to 60 °C (in storage and transportation)
Ambient humidity: 20 to 80 %RH (Non-condensing)
*1: Both connectors must always be connected directly to a computer.
*2: AIP830 with VESA Bracket must be mounted where it holds at least 10 kg of weight.
LAYOUT
The Operation Keyboard is composed of both alphanumeric keys and special operation keys.
It also has special window call keys grouped by function and 64 user-definable funciton keys which are used for process control and plant monitoring.

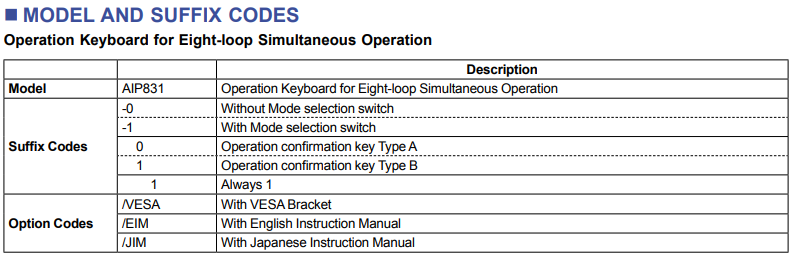

Model No examples :
AIP831-111
AIP831-111/EIM
AIP830-101/EIM
AIP830-001/EIM
