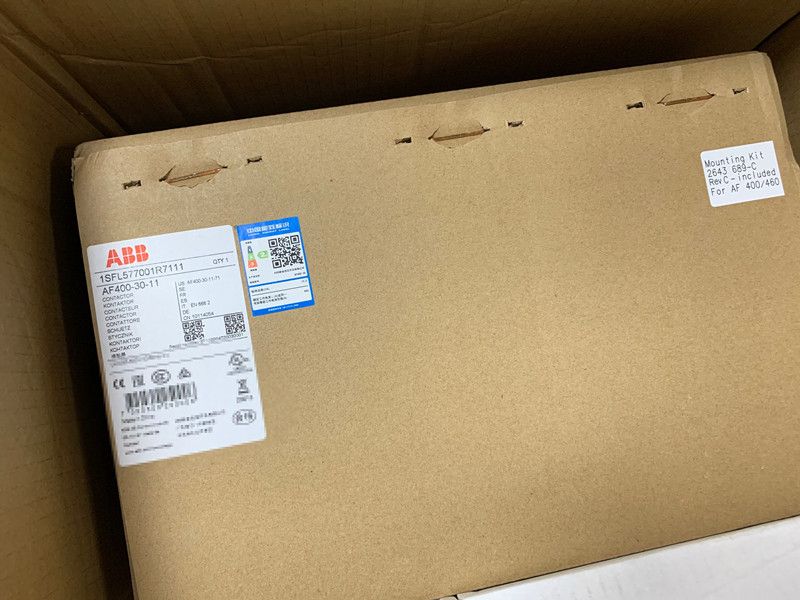

IN STOCK ABB AF400-30-11-70,1SFL577001R7011 100-250V 50/60Hz / 100-250V DC Contactor
- Product description
- Contact us
ABB AF400-30-11-70,1SFL577001R7011 100-250V 50/60Hz / 100-250V DC Contactor
AF400-30-11-70
General Information
Extended Product Type:AF400-30-11-70
Product ID:1SFL577001R7011
EAN:7320500217665
Catalog Description:AF400-30-11 100-250V 50/60Hz / 100-250V DC Contactor
Long Description:A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V. Operated with wide control voltage range 100-250 V, AC/DC
Container Information
Package Level 1 Units:box 1 piece
Package Level 1 Width:280 mm
Package Level 1 Depth / Length:375 mm
Package Level 1 Height:310 mm
Package Level 1 Gross Weight:12 kg
Package Level 1 EAN:7320500217665
Technical UL/CSA
Maximum Operating Voltage UL/CSA:Main Circuit 600 V
General Use Rating UL/CSA:(600 V AC) 550 A
Horsepower Rating UL/CSA:(200 V AC) Three Phase 125 hp
(208 V AC) Three Phase 125 hp
(220 ... 240 V AC) Three Phase 150 hp
(440 ... 480 V AC) Three Phase 350 hp
(550 ... 600 V AC) Three Phase 400 hp
Technical
Number of Main Contacts NO:3
Number of Main Contacts NC:0
Number of Auxiliary Contacts NO:1
Number of Auxiliary Contacts NC:1
Rated Operational Voltage:Main Circuit 1000 V
Rated Frequency (f):Main Circuit 50/60 Hz
Conventional Free-air Thermal Current (Ith):acc. to IEC 60947-4-1, Open Contactors q = 40 °C 600 A
Rated Operational Current AC-1 (Ie):(1000 V) 40 °C 600 A
(1000 V) 55 °C 500 A
(1000 V) 70 °C 400 A
(690 V) 40 °C 600 A
(690 V) 55 °C 500 A
(690 V) 70 °C 400 A
Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1:8 x Ie AC-3
Rated Making Capacity AC-3 acc. to IEC 60947-4-1:10 x Ie AC-3
Short-Circuit Protective Devices:gG Type Fuses 630 A
Connecting Capacity Main Circuit:Bar 47 mm
Rigid Al-Cable 2x240 m²
Rigid Cu-Cable 240 m²
Connecting Capacity Auxiliary Circuit:Flexible with Ferrule 2x 0.75 ... 2.5
Flexible with Insulated Ferrule 2x 0.75 ... 2.5
Flexible 2x0.75 ... 2.5 m²
Solid 2 x 1 ... 4 m²
Stranded 2 x 1 .... 4 m²
Dimensions
Product Net Width:186 mm
Product Net Depth / Length:216 mm
Product Net Height:278 mm
Product Net Weight:10.6 kg
