ABB TBX5 pH, Redox (ORP) sensors with diagnostics ,TB567 and TBX567 high pressure in-line sensors
Measurement made easy
The most durable pH / Redox (ORP) sensors in the world Next Step™ Solid State reference
• eliminates poisoning, pumping and plugging Advantage™ series with solution ground rod
• permits continuous sensor diagnostics Comprehensive selection of measuring electrodes
• sensors designed to suit all application requirements Combination style construction
• measuring, reference and temperature elements, all in one compact body Insertion, submersion, flow-through and hot-tap
• increases flexibility of installation Operating temperatures up to 140 °C (284 °F)
• the highest glass temperature limit on the market Operating pressures up to 21 bar (300 psi) and higher
• the highest pressure limit on the market
Body style
Sensor bodies are constructed of Kynar (PVDF) or Ryton (PPS). TB5 series sensors use Solid-State Next Step
references. The TBX5 series denotes Next Step Advantage types with integral solution ground.

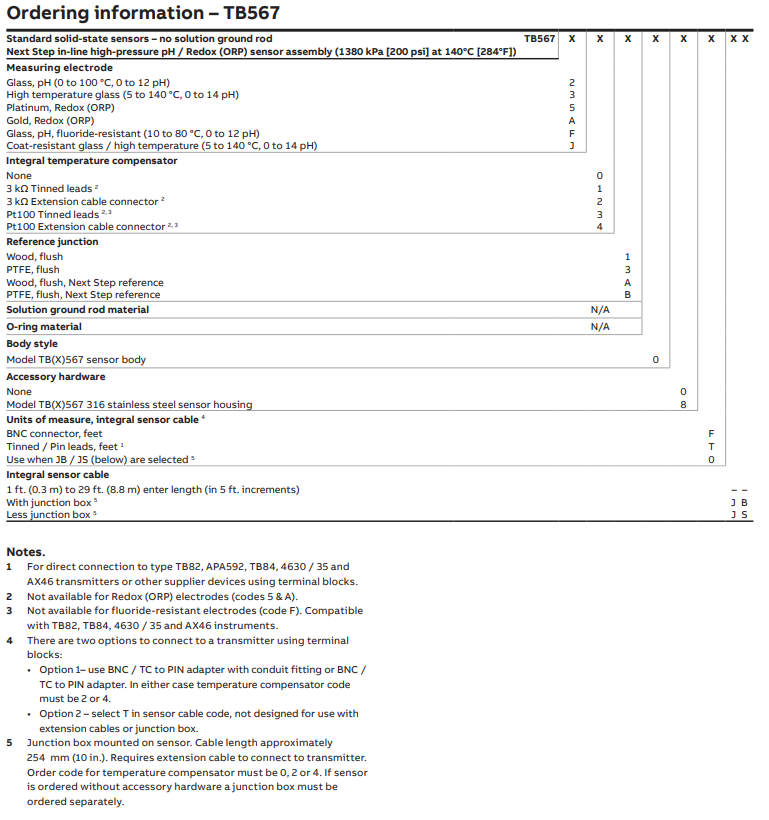

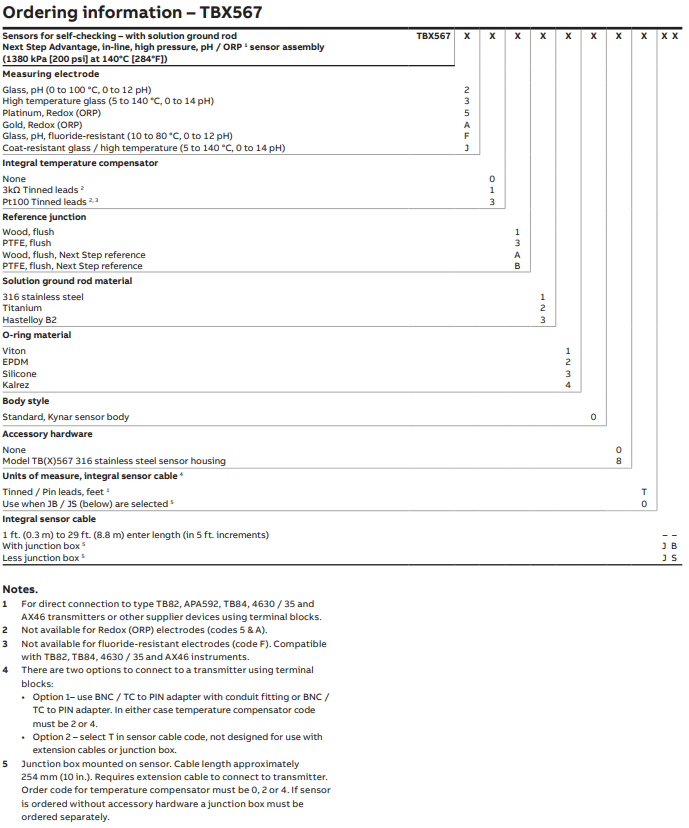

TB567 and TBX567 high pressure in-line sensors
TB(X)567 sensors are high pressure, in-line sensors. Their permissible pressure and temperature ratings are unique
in the industry. The assembly comprises two parts: a 316 stainless steel housing and a molded Ryton sensor body.
For applications above 1725 kPa (250 psi), please consult ABB
Specification
Applications
High pressure insertion
Maximum pressure / temperature
1380 kPa (200 psi) at 140 °C (284 °F)
1725 kPa (250 psi) at 100 °C (212 °F)
Features
2-piece sensor, double O-ring
Sealed body with stainless steel sleeve
Material
Electrode body Ryton (Polyphenylene sulphide)
Outer sleeve 316 stainless steel
External O-rings Viton
Junction Wood or PTFE
Junction types Flush
ABB TBX5 Series
TB551 and TBX551 Ryton sensors
TB556 and TBX556 Kynar sensors
TB557 and TBX557 hot-tap retractable sensors
TB561 and TBX561 Sterilizable sensors
TB564 and TBX564 high pressure hot-tap retractable sensors
TB567 and TBX567 high pressure in-line sensors
