PEPPERL+FUCHS SMART Current Driver KFD2-SCD2-Ex1.LK New & Original with very competitive price and One year Warranty

New & Original

KFD2-SCD2-Ex1.LK

Need a Quote?

Please contact us for more information.

Product description
Contact us

PEPPERL+FUCHS SMART Current Driver KFD2-SCD2-Ex1.LK

Features

• 1-channel isolated barrier

• 24 V DC supply (Power Rail)

• Current output up to 700 Ω load

• HART I/P and valve positioner

• Line fault detection (LFD)

• Accuracy 0.05 %

• Terminal blocks with test sockets

• Up to SIL 2 acc. to IEC 61508

Function

This isolated barrier is used for intrinsic safety applications. It drives SMART I/P converters, electrical valves, and positioners in hazardous areas.

Digital signals are superimposed on the analog values at the field or control side and are transferred bi-directionally.

Current transferred across the DC/DC converter is repeated at terminals 1 and 2. An open and shorted field circuit presents a high input impedance to the control

side to allow line fault detection by control system.

If the loop resistance for the digital communication is too low, an internal resistor of 250 Ω between terminals 8 and 9 is available, which may be used as the HART communication resistor.

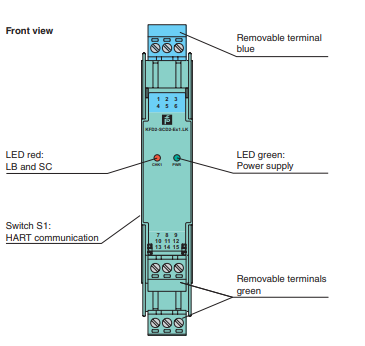

Sockets for the connection of a HART communicator are integrated into the terminals of the device.

A unique collective error messaging feature is available when used with the Power Rail system.

bcf3f04d7504450890730d04037af09_副本

实拍_副本_副本

There have More items , all for 100% New & Original with very good discount , pls kindly contact with Chris directly to know more details information .
