PEPPERL+FUCHS Universal Temperature Converter KFD2-UT2-Ex2 Intrinsic Safety Barriers Isolated Barriers K-System Signal Converters
Features :
• 2-channel isolated barrier
• 24 V DC supply (Power Rail)
• Thermocouple, RTD, potentiometer or voltage input
• Usable as signal splitter (1 input and 2 outputs)
• Current output 0/4 mA ... 20 mA
• Sink or source mode
• Configurable by PACTware
• Line fault (LFD) and sensor burnout detection
• Up to SIL 2 acc. to IEC 61508/IEC 61511
Function :
This isolated barrier is used for intrinsic safety applications.
The device converts the signal of a resistance thermometer,
thermocouple, or potentiometer to a proportional output current.
The device can also be configured as a signal splitter.
The removable terminal block K-CJC-** is available as an accessory for internal cold junction compensation of thermocouples.

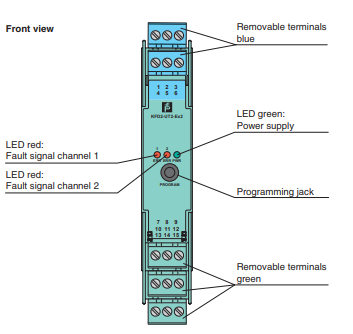

A fault is signalized by LEDs acc. to NAMUR NE44 and a separate collective error message output.
The device is easily configured by the use of the PACTware configuration software.
