PEPPERL+FUCHS Thermocouple Converter KFD0-TT-Ex1 Intrinsic Safety Barriers Isolated Barriers K-System Signal Converters New & Original with very competitive price and One year Warranty

New & Original

KFD0-TT-Ex1

Please contact us for more information.

PEPPERL+FUCHS Thermocouple Converter KFD0-TT-Ex1 Intrinsic Safety Barriers Isolated Barriers K-System Signal Converters

Features :

• 1-channel isolated barrier

• 24 V DC supply (loop powered)

• Thermocouple input

• Output 4 mA ... 20 mA

• Internal cold junction compensation

• Sensor breakage detection

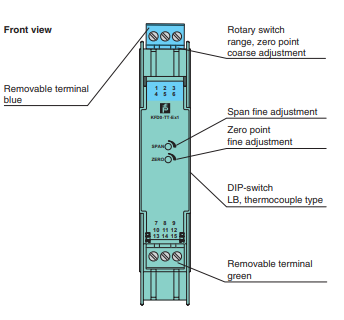

• DIP switch selectable ranges

Function :

This isolated barrier is used for intrinsic safety applications. It

is a loop-powered isolator that converts thermocouple inputs

in the hazardous area to a 4 mA ... 20mA signal in the safe area.

The internal cold junction compensation can be bypassed by using terminals 1 and 3.

The output current is linear to input voltage, not proportional to temperature. Zero, span, and burnout detection are fieldconfigurable.
