PEPPERL+FUCHS Current/Voltage Converter KFD0-CC-Ex1 Intrinsic Safety Barriers Isolated Barriers K-System Signal Converters New & Original with very competitive price and One year Warranty

New & Original

KFD0-CC-Ex1

Please contact us for more information.

PEPPERL+FUCHS Current/Voltage Converter KFD0-CC-Ex1

Intrinsic Safety Barriers Isolated Barriers K-System Signal Converters

Features :

• 1-channel isolated barrier

• 24 V DC supply (loop powered)

• Current or voltage input

• Output: 4 ... 20 mA

• Potentiometer or DIP switch selectable ranges

• Line fault detection (LFD)

Function:

This isolated barrier is used for intrinsic safety applications. It

converts a 2-wire voltage or current in the hazardous area to a

4 mA ... 20 mA signal in the safe area.

The device can be used to double signals in 20 mA

measurement circuits due to the limited current signal input

load of 50 Ω.

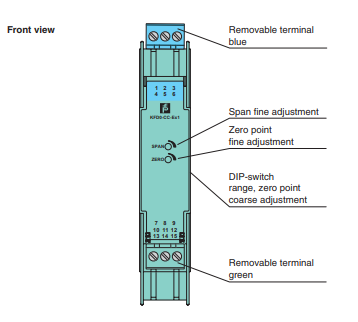

DIP switches and potentiometers make field calibration easy.

Since this isolator is loop-powered, use the technical data to

verify that the proper voltage is available to the field devices.
