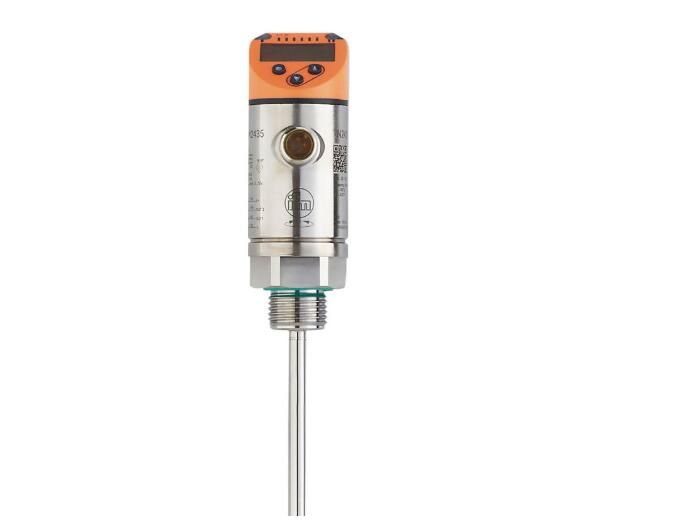

IFM TN2435 Temperature sensor with display New & Original with very competitive price and One year Warranty
New & Original
TN2435
Please contact us for more information.
- Product description
- Contact us
IFM TN2435 Temperature sensor with display New & Original with very competitive price and One year Warranty
Very large temperature evaluation range
With switching output, analogue signal and IO-Link
Intuitive and user-friendly 3-pushbutton control
Red/green display for clear identification of the acceptable range
Clearly visible LEDs for switching status indication
| Product characteristics | |
|---|---|
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 |
| Measuring range | -50...150 °C-58...302 °F |
| Process connection | threaded connection G 1/2 |
| Installation length EL [mm] | 100 |
| Application | |
| Special feature | Gold-plated contacts |
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) |
| Media | liquids and gases |
| Pressure rating [bar] | 250 |
| Electrical data | |
| Operating voltage [V] | 18...32 DC; ("supply class 2" to cULus) |
| Current consumption [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 1 |
| Integrated watchdog | yes |
| Inputs / outputs | |
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 |
| Outputs | |
| Total number of outputs | 2 |
| Output signal | switching signal; analogue signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 250 |
| Number of analogue outputs | 1 |
| Analogue current output [mA] | 4...20 |
| Max. load [Ω] | 500 |
| Analogue voltage output [V] | 0...10 |
| Min. load resistance [Ω] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Measuring/setting range | |
| Measuring range | -50...150 °C-58...302 °F |
| Factory setting | -50...150 °C |
| Set point SP | -49.8...150 °C-57.6...302 °F |
| Reset point rP | -50...149.8 °C-58...301.6 °F |
| Analogue start point | -50...145 °C-58...293 °F |
| Analogue end point | -45...150 °C-49...302 °F |
| In steps of | 0.1 °C0.1 °F |
| Resolution | |
| Resolution of switching output [K] | 0.1 |
| Resolution of analogue output [K] | current output: MS / 4096; voltage output: MS / 3561 |
| Resolution of display [K] | 0.1 |
| Accuracy / deviations | |
| Switch point accuracy [K] | ± 0,3 + (± 0,1 % MS) |
| Precision analogue output [K] | ± 0,3 + (± 0,1 % MS) |
| Display accuracy [K] | ± 0,3 + (± 0,1 % MS) |
| Temperature coefficient [% of the span / 10 K] | 0,1; (in case of deviation from the reference condition 25 ± 5 °C) |
| Response times | |
| Dynamic response T05 / T09 [s] | 1 / 3; (to DIN EN 60751) |
| Software / programming | |
| Parameter setting options | hysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping; Display unit; current/voltage output |
| Interfaces | |
| Communication interface | IO-Link |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| Operating conditions | |
| Ambient temperature [°C] | -25...80 |
| Storage temperature [°C] | -40...100 |
| Protection | IP 67 |
| Tests / approvals | |
| EMC | DIN EN 61000-6-2DIN EN 61000-6-3 |
| Shock resistance | DIN IEC 68-2-2750 g (11 ms) |
| Vibration resistance | DIN EN 60068-2-620 g (10...2000 Hz) |
| MTTF [years] | 207 |
| UL approval | UL Approval no.K015 |
| Mechanical data | |
| Weight [g] | 306 |
| Materials | stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC |
| Materials (wetted parts) | stainless steel (1.4404 / 316L); O-ring: FKM |
| Process connection | threaded connection G 1/2 |
| Installation length EL [mm] | 100 |
| Displays / operating elements | |
| Display | Display unit2 x LED, greenswitching status2 x LED, yellowmeasured valuesalphanumeric display, red/green 4-digit |
| Remarks | |
| Remarks | MS = set measuring spanThe values for accuracy apply to flowing water. |
| Pack quantity | 1 pcs. |
| Electrical connection | |
| Connection | Connector: 1 x M12; Contacts: gold-plated |
