In stock IFM EVC005 Connecting cable with socket 100% New & Original with very competitive price and One year Warranty

New & Original

EVC005

Please contact us for more information.

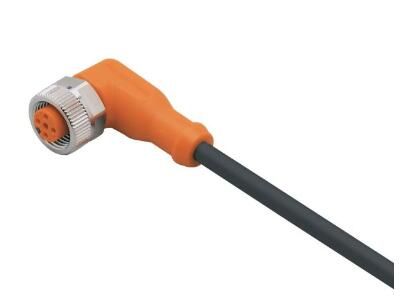

In stock IFM EVC005 Connecting cable with socket

100% New & Original with very competitive price and One year Warranty

Application
Special feature	Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Free from silicone	yes
Electrical data
Operating voltage [V]	< 250 AC / < 300 DC
Protection class	II
Max. current load total [A]	4
Operating conditions
Ambient temperature [°C]	-25...90
Note on ambient temperature	cULus: ...75
Ambient temperature (moving) [°C]	-25...90
Note on ambient temperature (moving)	cULus: ...75
Protection	IP 65; IP 67; IP 68; IP 69K
Mechanical data
Weight [g]	176.6
Dimensions [mm]	26.5 x 15.5 x 36.5
Materials	housing: TPU orange; Sealing: FKM
Material nut	brass, nickel-plated
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible usemin. 10 x cable diametertravel speedmax. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²bending cycles> 5 Mio.torsional strain± 180 °/m
Remarks
Pack quantity	1 pcs.
Electrical connection
	Cable: 5 m, PUR, Halogen-free, black, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical connection - socket
Connection	Connector: 1 x M12, angled; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

EVC005
