Fluke 718 Pressure Calibrator New & Original with very competitive price and One year Warranty

Key features

* Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device

* Integrated pump is easily cleaned when accidently exposed to fluids that reduces cost of ownership and repairs and enables servicing the pump in the field

* Error % calculation for quicker pass/fail decision making in the field

* Best in class mA accuracy of 0.015% for better measurement confidence and workload coverage

* Min/Max/Hold to capture changing measurements

* Switch test feature for quicker and more accurate pressure switch testing

* New 1 and 300 psi pressure ranges mean fewer extra tools required

* 1, 30, 100 & 300 psi ranges now available

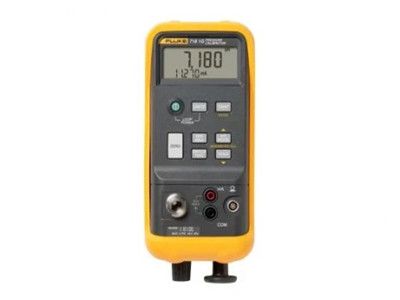

Product overview: Fluke 718 Pressure Calibrator

The Fluke 718 Pressure Calibrator provides a total pressure calibration solution for transmitters, gauges and switches.

This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds).

The unique easy to clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field.

Specifications: Fluke 718 Pressure Calibrator

Technical Specifications
Fluke 718 Series
Measure pressure	(Internal sensor)
Accuracy	0.025% full scale
Functions	Zero, min/max, hold, damp
Dry air, non-corrosives only
Fluke 718 1G
Range	-1 psi to +1 psi, -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa)
Resolution	0.0001 psi, 0.001 mbar, 0.0001 kPa
Over pressure	5x Full Scale
Functions	Zero, Min, Max, Hold, Damp
Fluke 718 30G
Range	-12 psi to 30 psi, (-850 mbar to 2 bar, -85 to 206.84 kPa)
Resolution	0.001 psi, 0.1 mbar, 0.01 kPa
Over pressure	5x Full Scale
Functions	Zero, Min, Max, Hold, Damp
Fluke 718 100G
Range	-12 psi to 100 psi, (-850 mbar to 7 bar, -85 to 689.48 kPa)
Resolution	0.01 psi, 0.1 mbar, 0.01 kPa
Over pressure	2x Full Scale
Functions	Zero, Min, Max, Hold, Damp
Fluke 718 300G
Range	-12 psi to 300 psi, (-850 mbar to 20 bar, -85 to 2068.42 kPa)
Resolution	0.01 psi, 1 mbar, 0.1 kPa
Over pressure	375 psi 25 bar
Functions	Zero, Min, Max, Hold, Damp
Fluke 718 series via 700 Series Pressure Modules
Range	29 pressure modules, 0 – 1 inH20 to 10,000 psi, 2.5 mbar to 700 bar. Over pressure per pressure module specs
Resolution	Per pressure module specs
Accuracy	To 0.025% of full span, per pressure module specs
Functions	Zero, Min, Max, Hold, Damp
Media compatibility per pressure module specs
Fluke 718 Series Via Built in Pump
Range	-12 psi or -850 mbar to full scale Supported Pressure Units; psi, inH20 (4°C), inH20 (20°C), cmH20 (4°C), cmH20 (20°C), bar, mbar, kPa, inHg, mmHg, kg/cm
Loop power range	24 V DC
Accuracy	±10%
Drive; 20 mA into 1000 Ω for battery > 6.8 V; 700 Ω for battery 5.8 to 6.8 V
mA Measure
Range	0 mA to 24 mA
Resolution	0.001 mA
Accuracy	0.015% + 1 count
General Specifications
Maximum voltage	30 volts (non-operating)
Temperature	-40°C to 60°C
Operating temperature	-10°C to 55°C
Relative humidity	95% (10°C to 30°C); 75% (30°C to 40°C); 45% (40°C to 50°C); 35% (50°C to 55°C)
Operating altitude	3,000 M max
Shock	1 M drop test
Vibration	Random, 2 g, 5 Hz – 500 Hz
Safety	CSA C22.2 No. 1010.1: 1992
EMC	EN50082-1: 1992 and EN55022: 1994 Class B
Size	216 x 94 x 66 mm (8.50 x 3.72 x 2.60 in)
Weight	992 g (35 oz)
Power, battery life	9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two batteries in 718
Battery life	4 to 20 hours typical, depending on functions used
Warranty	One years (one year on pressure pump in Fluke 718)
Display	LCD, 5 digit pressure and current simultaneous
