YOKOGAWA Model ALE111 Ethernet Communication Module (for FIO) ALE111-S00

GENERAL

This document describes about Model ALE111 Ethernet Communication Module (for FIO) that a field control station

(FCS) uses to perform Ethernet communication with subsystems such as FA-M3.

This Ethernet communication module can be mounted on field control units (AFV30, AFV40, AFV10, and AFF50),

ESB bus node unit (ANB10), optical ESB bus node unit (ANB11), and ER bus node unit (ANR10).

Functional Overview

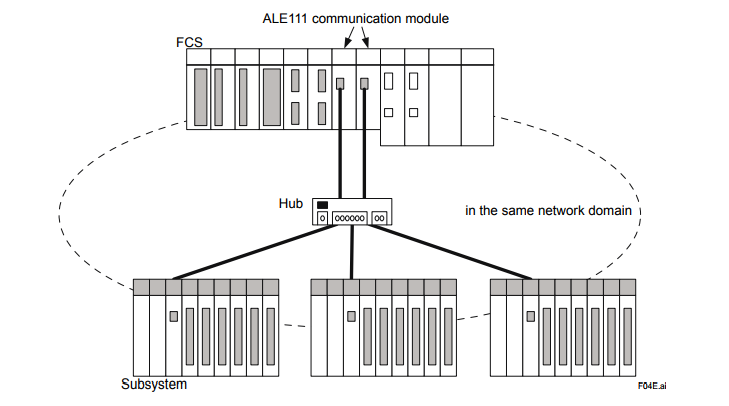

The Ethernet communication module can be made dual-redundant by setting two ALE111 modules in the adjacent

(odd- and even-numbered) slots of the same node unit. (*1)

Data Input

Flow Each of the two ALE111 modules communicates with the subsystem and reads the subsystem input image data

into the module. An FCS accesses the control communication module to read and use these data;

however, it does not access the standby communication module. When the FCS detects a control communication

module error or subsystem communication failure, the FCS switches its control to the standby module from which to read data.

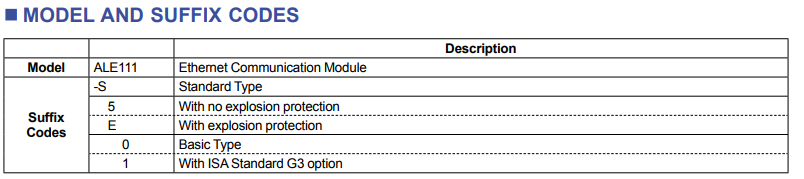

Model No examples :

ALE111-S50

ALE111-S00

ALE111-S51

Products
