PEPPERL+FUCHS Switch Amplifier KFD2-SOT2-Ex1.LB.IO Intrinsic Safety Barriers Isolated Barriers K-System

Switch Amplifier KFD2-SOT2-Ex1.LB.IO

·         1-channel isolated barrier

·         24 V DC supply (Power Rail)

·         Dry contact or NAMUR inputs

·         Usable as signal splitter (1 input and 2 outputs)

·         Isolated passive transistor output, non-polarized

·         Isolated passive fault output, non-polarized

·         Line fault detection (LFD)

·         Reversible mode of operation

·         Up to SIL 2 acc. to IEC 61508

Function :

This isolated barrier is used for intrinsic safety applications. It transfers digital signals (NAMUR sensors/mechanical contacts) from a hazardous area to a safe area.

The proximity sensor or switch controls two passive transistors for the safe area load. Both transistor outputs are isolated from each other and isolated from the power supply.

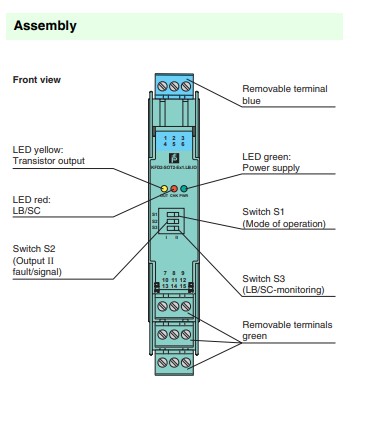

The normal output state can be reversed using switch S1. Switch S2 allows output II to be switched between a signal output and an error message output.

Switch S3 enables or disables line fault detection of the field circuit. During an error condition, the transistors revert to their deenergized state

 and LEDs indicate the fault according to NAMUR NE44. A unique collective error messaging feature is available when used with the Power Rail system.

Selection models:

KCD2-SR-Ex1.LB                                      KCD2-SR-Ex2                                KFA6-DU-Ex1.D

KFA6-ER-Ex1.W.LB                                  KFA6-SOT2-Ex2                             KFA6-SR2-Ex1.W

KFA6-SR2-Ex1.W.LB                                KFA6-SR2-Ex2.W                           KFA6-SR2-Ex2.W.IR

KFD2-DU-Ex1.D

KFD2-ELD-Ex16                                       KFD2-ER-Ex1.W.LB                         KFD2-SH-Ex1

KFD2-SH-Ex1.T.OP                                  KFD2-SOT3-Ex1.LB                         KFD2-SOT3-Ex1.LB.IO

KFD2-SOT3-Ex2                                       KFD2-SOT3-Ex2.IO                         KFD2-SR2-Ex1.W

KFD2-SR2-Ex1.W.LB

KFD2-SR2-Ex2.W                                    KFD2-SR3-Ex2.2S                           KFD2-SRA-Ex4

KFD2-ST3-Ex1.LB                                   KFD2-ST3-Ex2                                 KHA6-SH-Ex1

KCD2-SON-Ex1                                       KCD2-SOT-Ex1.LB                           KCD2-SOT-Ex2

KCD2-SOT-Ex2.SP

KCD2-SR-Ex1.LB.SP                               KCD2-SR-Ex2.SP                             KCD2-ST-Ex1.LB

KCD2-ST-Ex2                                          KFA5-SOT2-Ex2                               KFA5-SR2-Ex1.W

KFA5-SR2-Ex1.W.LB                               KFA5-SR2-Ex2.W                             KFA5-SR2-Ex2.W.IR

KFD2-SH-Ex1.T

KFD2-SOT3-Ex2.IO-Y1                          KCD2-SON-Ex1.R1                         KCD2-SON-Ex1.SP

KCD2-SON-Ex2                                      KCD2-SON-Ex2.R1                         KCD2-SON-Ex2.SP

KCD2-SOT-Ex1.LB.SP                           KCD2-ST-Ex1.LB.SP                        KCD2-ST-Ex2.SP

KFA4-SR2-Ex2.W
