PEPPERL+FUCHS Switch Amplifier KCD2-SON-Ex2.R1 Intrinsic Safety Barriers Isolated Barriers K-System

Switch Amplifier KCD2-SON-Ex2.R1

·         2-channel isolated barrier

·         24 V DC supply (Power Rail)

·         Dry contact or NAMUR inputs

·         2 passive transistor outputs (resistive)

·         Application-specific outputs

·         Line fault transparency (LFT)

·         Housing width 12.5 mm

·         Up to SIL 2 acc. to IEC 61508

Function :

This isolated barrier is used for intrinsic safety applications. The device transfers digital signals (NAMUR sensors or dry contacts)

from a hazardous area to a safe area. Each input controls a passive transistor output with a resistive output characteristic.

The outputs have three defined states: 1-Signal = 6.5 V voltage drop, 0-Signal = 33 kolihm and 6.5 V voltage drop and fault > 100 kolihm.

This output characteristic offers line fault transparency on the signal lines. Via switches the mode of operation can be

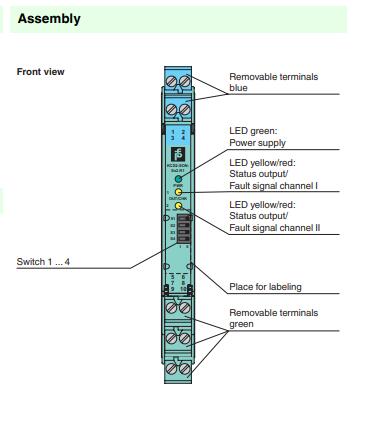

reversed and the line fault detection can be switched off. A fault is signalized by LEDs acc. to NAMUR NE44 and

a separate collective error message output.

Selection models:

KCD2-SR-Ex1.LB                                      KCD2-SR-Ex2                                KFA6-DU-Ex1.D

KFA6-ER-Ex1.W.LB                                  KFA6-SOT2-Ex2                             KFA6-SR2-Ex1.W

KFA6-SR2-Ex1.W.LB                                KFA6-SR2-Ex2.W                           KFA6-SR2-Ex2.W.IR

KFD2-DU-Ex1.D

KFD2-ELD-Ex16                                       KFD2-ER-Ex1.W.LB                         KFD2-SH-Ex1

KFD2-SH-Ex1.T.OP                                  KFD2-SOT3-Ex1.LB                         KFD2-SOT3-Ex1.LB.IO

KFD2-SOT3-Ex2                                       KFD2-SOT3-Ex2.IO                         KFD2-SR2-Ex1.W

KFD2-SR2-Ex1.W.LB

KFD2-SR2-Ex2.W                                    KFD2-SR3-Ex2.2S                           KFD2-SRA-Ex4

KFD2-ST3-Ex1.LB                                   KFD2-ST3-Ex2                                 KHA6-SH-Ex1

KCD2-SON-Ex1                                       KCD2-SOT-Ex1.LB                           KCD2-SOT-Ex2

KCD2-SOT-Ex2.SP

KCD2-SR-Ex1.LB.SP                               KCD2-SR-Ex2.SP                             KCD2-ST-Ex1.LB

KCD2-ST-Ex2                                          KFA5-SOT2-Ex2                               KFA5-SR2-Ex1.W

KFA5-SR2-Ex1.W.LB                               KFA5-SR2-Ex2.W                             KFA5-SR2-Ex2.W.IR

KFD2-SH-Ex1.T

KFD2-SOT3-Ex2.IO-Y1                          KCD2-SON-Ex1.R1                         KCD2-SON-Ex1.SP

KCD2-SON-Ex2                                      KCD2-SON-Ex2.R1                         KCD2-SON-Ex2.SP

KCD2-SOT-Ex1.LB.SP                           KCD2-ST-Ex1.LB.SP                        KCD2-ST-Ex2.SP

KFA4-SR2-Ex2.W
