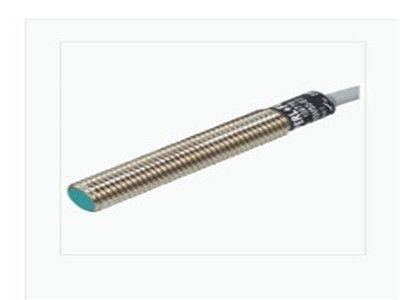

PEPPERL+FUCHS Inductive sensor NBB4-12GM75-US Proximity Sensors Industrial Sensors

General specifications

Switching function    Normally open (NO)

Output type Two-wire

Rated operating distance 4 mm

Installation  flush

Output polarity  AC/DC

Reduction factor rAl  0.5

Reduction factor rCu 0.45

Reduction factor r304     0.75

Output type 2-wire

Nominal ratings

Operating voltage    20 ... 250 V AC/20 ... 300 V DC

Switching frequency  30 Hz

Hysteresis   3 ... 15 typ. 5 %

Reverse polarity protection   reverse polarity tolerant

Short-circuit protection   yes

Voltage drop     ≤ 8 V

Operating current     8 ... 200 mA AC/DC

Off-state current ≤ 0.8 mA

Operating voltage indicator   LED, green

Switching state indicator  LED, yellow
