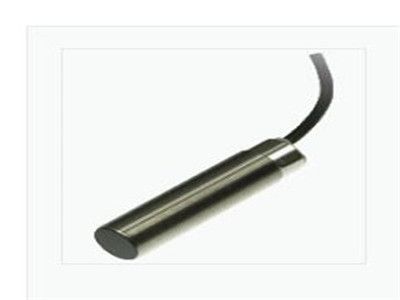

PEPPERL+FUCHS Capacitive sensor CBB8-18GS75-E0 Proximity Sensors Industrial Sensors

General specifications

Switching function    Normally open (NO)

Output type NPN

Rated operating distance 1 ... 8 mm

Installation  flush

Output polarity  DC

Nominal ratings

Operating voltage    10 ... 30 V

Switching frequency  0 ... 100 Hz

Reverse polarity protection   reverse polarity protected

Short-circuit protection   pulsing

Voltage drop     ≤ 1.5 V

Temperature drift     max. 20 % at -5 ... 55 °C (23 ... 131 °F)

Operating current     0 ... 100 mA

No-load supply current   ≤ 18 mA

Indicators/operating means

LED green   Operating display

LED yellow  indication switching state

Potentiometer    sensitivity adjustment
