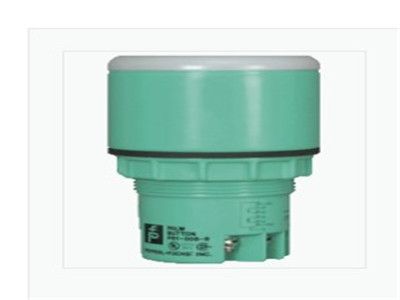

PEPPERL+FUCHS Palm Button PB2-008-6

Product Description

Palm Button

General specifications

Description  hand sensitive actuation

Nominal ratings

Operating voltage    24 V DC

Current consumption      100 mA

Indicators/operating means

Switching state   1 LED

Output

Number/Type    2 NO; 2 NC

Output type Contact set ;

Relay output

(contacts are one-way guided)

Switching voltage     max. 250 V AC

Switching current      1 A AC/DC ( resistive load and inductive load )

Switch-on delay  ≤ 60 ms

Switch-off delay ≤ 80 ms

Mechanical life   ≥ 5 x 107

Electrical life ≥ 5 x 106

Electromagnetic compatibility

Electrostatic discharge

Contact discharging  8 kV

Electromagnetic fields

Radio frequency immunity IEC61000-4-3   10 V/m , see note 1

Burst IEC 61000-4-4 4 kV

Surge IEC 61000-4-5 symmetrical: 500 V

asymmetrical: 500 V

Conducted noise immunity IEC 61000-4-6 10 V rms , see note 1
